Removal [09/2023 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE METER MIRROR SUB-ASSEMBLY

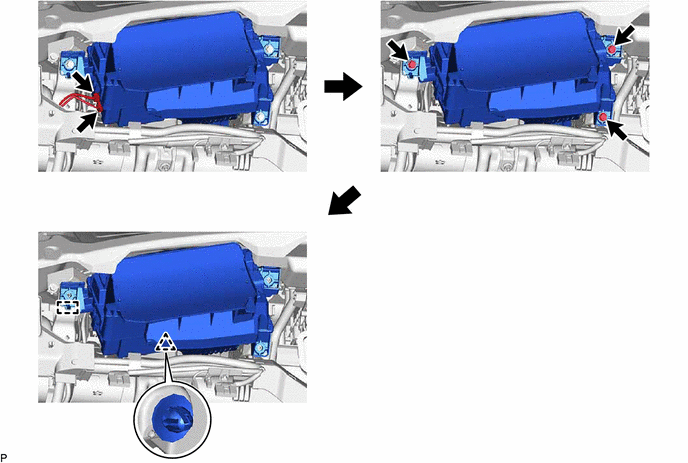

    1. GTY1203499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
