Caution / Notice / Hint

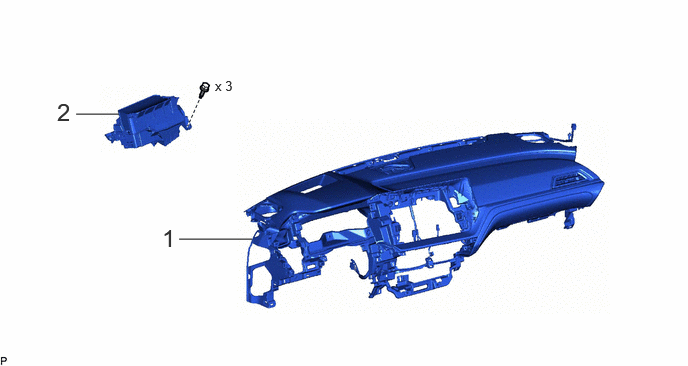

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during headup display removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly | Parking Support Brake System* | Refer to INITIALIZATION [09/2023 - ] |
*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.
WARNING:
Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [09/2023 - ]
NOTE:
- After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
- When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. Refer to PRECAUTION [09/2023 - ] Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [09/2023 - ] Adaptive High Beam System Lighting System (w/ Automatic Headlight Beam Level Control System) LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLYEffect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Back Door System Reset back door close position Refer to INITIALIZATION [09/2023 - ] Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. - - It is necessary to perform the same operation after removing and installing the system supply power fuse.
