COMPONENTS (INSTALLATION)

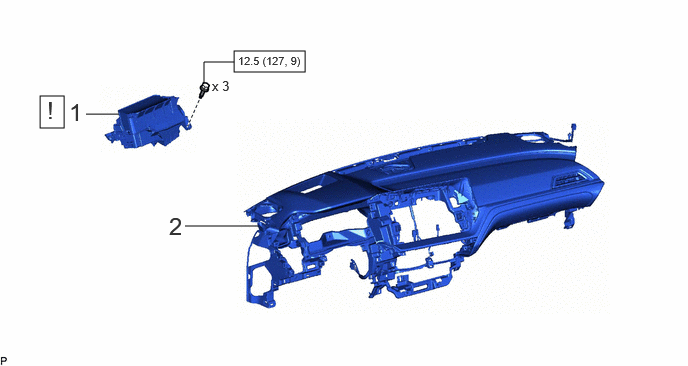

Fig 1: Headup Display Installation Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	METER MIRROR SUB-ASSEMBLY	83108	See step 1	-	-
2	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque
