Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during combination meter assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Combination meter assembly | Update ECU security key | Vehicle Control History (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [09/2023 - ] |
| Software update*1 | - | Refer to REGISTRATION [09/2023 - ] |
*1: for 12.3 Inch Display

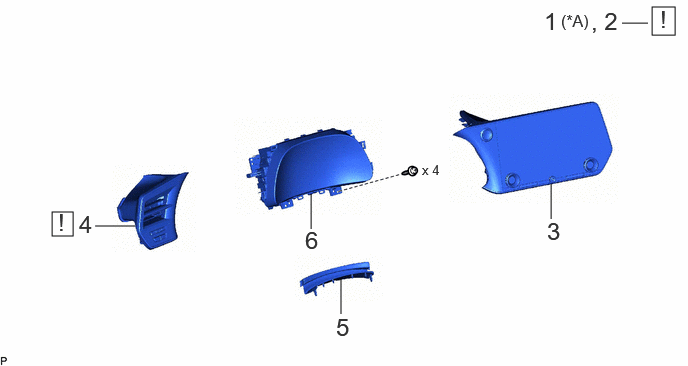

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS | - | See step 2 | - | - |
| 3 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | - | - | - |
| 4 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | 55650 | See step 4 | - | - |
| 5 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55404D | - | - | - |
| 6 | COMBINATION METER ASSEMBLY | 83100 | - | - | - |
| *A | w/ Headup Display | - | - |
