Installation [10/2024 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

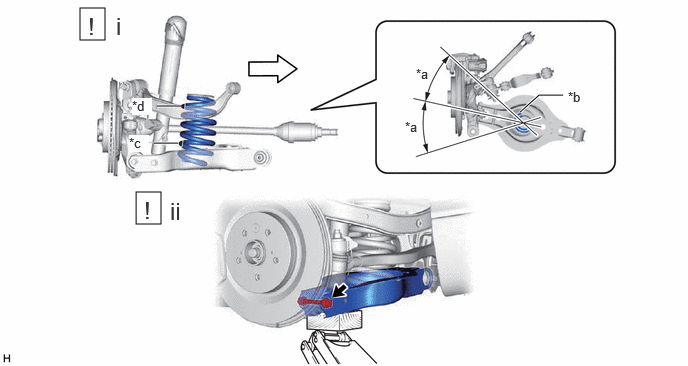

   *a	30° or less	*b	Lower end of rear coil spring
   *c	Identification mark for TMC made	*d	Identification mark for TMMC made
   	Inner side of the vehicle	-	-

   1. Set the rear coil spring to the rear No. 2 suspension arm assembly.
      NOTE:

      • Be sure to install the rear coil spring so that the lower end is positioned on the outside of the vehicle +/-30° range.
      • Be sure to install the rear coil spring so that the identification mark is facing the outside of the vehicle.
   2. Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt.
      WARNING:

      Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

      NOTE:

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
      • Insert the bolt from the rear of the vehicle.
      • The smaller diameter end must face upward.
      • Make sure to align the center point of the rear upper coil spring insulator with that of the vehicle body side convex shape.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

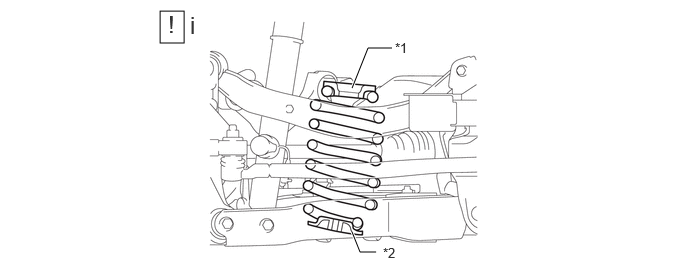

   *1

   REAR UPPER COIL SPRING INSULATOR

   *2

   REAR LOWER COIL SPRING INSULATOR

   1. Check that the rear coil spring upper insulator and the rear coil spring lower insulator are installed as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

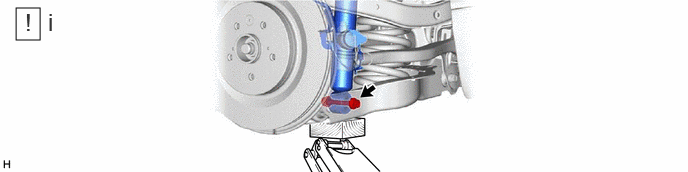

   1. Temporarily install the rear shock absorber assembly to the rear No. 2 suspension arm assembly with bolt.
      NOTE:

      Insert the bolt from the rear of the vehicle.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

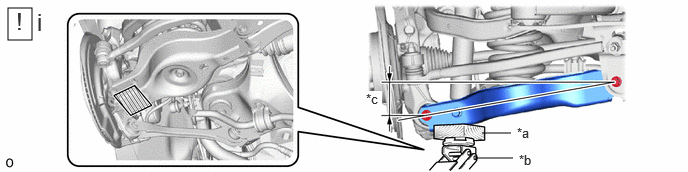

   *a	Wooden block	*b	Jack
   *c	15.2 mm (0.598 in.)	-	-
   	Wooden block placement location	-	-

   1. Using a jack and wooden block, etc., apply load to the suspension so that the No. 2 rear suspension arm assembly is positioned as shown in the illustration.
      WARNING:

      • Do not raise the rear No. 2 suspension arm assembly more than necessary.
      • If you lift it more than necessary, the vehicle may fall off the lift and cause a serious accident.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NOTE:

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.

Torque: 85 N.m (867 kgf/cm, 63 ft.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

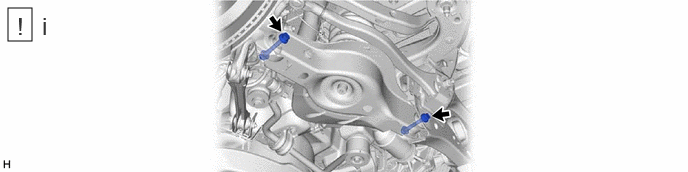

   1. Install the rear No. 2 suspension arm assembly (rear suspension member sub-assembly side) with the bolt.

      Torque: 97 N.m (989 kgf/cm, 72 ft.lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   2. Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

      Torque: 105 N.m (1071 kgf/cm, 77 ft.lbf)

Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

Refer to INSTALLATION [10/2022 - ]

Refer to INSTALLATION [10/2022 - ]

Refer to ADJUSTMENT [08/2023 - ]
