Caution / Notice / Hint

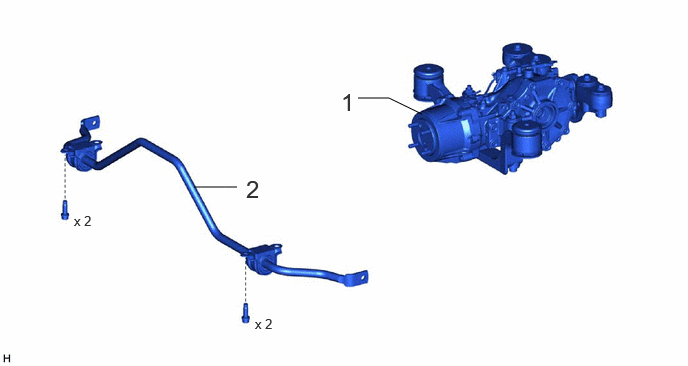

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear stabilizer bar removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED (FOR GASOLINE MODEL)
| Replacement Part | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Rear wheel alignment adjustment |
|
|
Refer to RESET MEMORY / CALIBRATION [10/2022 - ] |
| Suspension parts | Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | Refer to CALIBRATION [10/2022 - ] |
| Parking assist ECU initialization | Panoramic View Monitor System | Refer to CALIBRATION [10/2022 - ] | |
| Advanced Park | Refer to CALIBRATION [10/2022 - ] | ||
| Perform headlight ECU sub-assembly LH initialization | Lighting System (w/ Automatic Headlight Beam Level Control System) | Refer to INITIALIZATION [10/2022 - ] | |
| Tires | ECU Data Initialization (When performing tire replacement after RoB code X2104 is output) | Dynamic Torque Control AWD System | Refer to CALIBRATION [10/2022 - ] |
|
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [10/2022 - 08/2023] , or refer to WORK PROCEDURE [08/2023 - ] |
|
| Rear television camera assembly optical axis (Back camera position setting)*3 | Parking Assist Monitor System | Refer to CALIBRATION [10/2022 - ] | |
| Parking assist ECU initialization*3 | Panoramic View Monitor System | Refer to CALIBRATION [10/2022 - ] | |
| Advanced Park | Refer to CALIBRATION [10/2022 - ] | ||
| Rear height control sensor sub-assembly LH | Perform headlight ECU sub-assembly LH initialization | Lighting system (w/ Automatic Headlight Beam Level Control System) | Refer to INITIALIZATION [10/2022 - ] |
| Gas leak from exhaust system is repaired | Perform Inspection After Repair |
|
Refer to INITIALIZATION [10/2022 - ] |
*1: Also necessary after performing a tire rotation.
*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
*3: The vehicle height changes because of tire replacement.
WARNING:
- The rear differential carrier assembly is very heavy. Be sure to follow the procedure described in the appropriate service information
, or the engine lifter may suddenly drop.

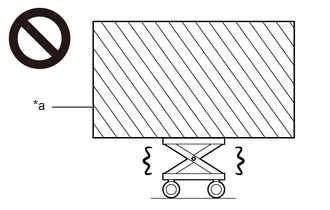

*a Object Exceeding Weight Limit of Engine Lifter - To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
