Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear stabilizer bar removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED (EXCEPT GASOLINE MODEL)
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Tires |
|
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [10/2022 - 08/2023] , or refer to WORK PROCEDURE [08/2023 - ] |
| Rear television camera assembly optical axis (Back camera position setting)*3 | Parking Assist Monitor System | Refer to CALIBRATION [10/2022 - ] | |
| Parking assist ECU initialization*3 | Panoramic View Monitor System | Refer to CALIBRATION [10/2022 - ] | |
| Advanced Park | Refer to CALIBRATION [10/2022 - ] |
*1: Also necessary after performing a tire rotation.
*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
*3: The vehicle height changes because of tire replacement.

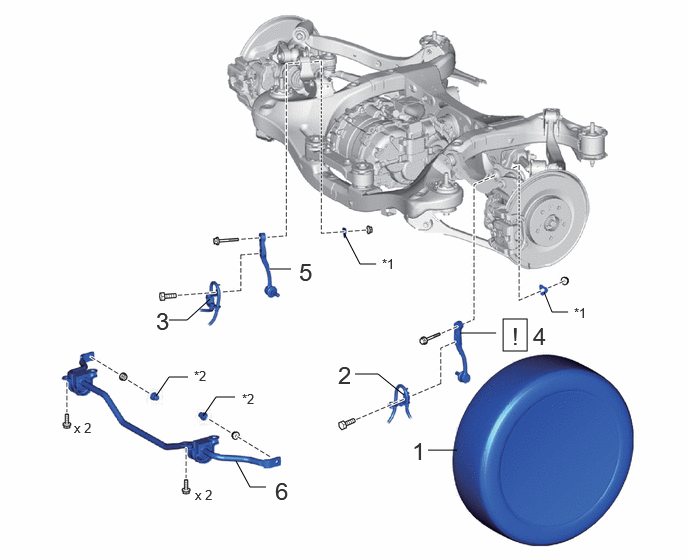

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR WHEEL | - | - | - | - |
| 2 | NO. 2 FLEXIBLE HOSE BRACKET | 47352B | - | - | - |
| 3 | NO. 1 FLEXIBLE HOSE BRACKET | 47351B | - | - | - |
| 4 | REAR STABILIZER LINK ASSEMBLY LH | 48840A | See step 4 | - | - |
| 5 | REAR STABILIZER LINK ASSEMBLY RH | 48830D | - | - | - |
| 6 | REAR STABILIZER BAR | 48812 | - | - | - |
| 1 | REAR NO. 1 SUSPENSION ARM WASHER | 2 | CAP |
