Installation [10/2022 - ]: Procedure

  1. INSPECT AXLE HUB BOLT (AXLE HUB BOLT WITH A WASHER (SWAGE TYPE))
    1. Inspect the washer:

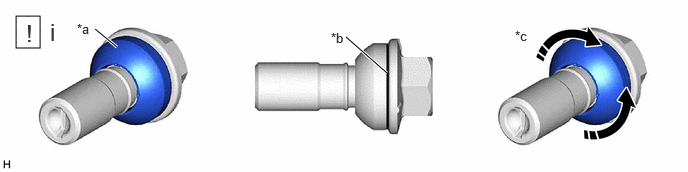

      GTY1138201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Seating Surface *b Contact Surface of the Bolt
      *c Rotates Smoothly - -
      1. Check the movement of the washer (spherical seat surface and bolt contact surface) of the axle hub bolt and confirm that there is no damage or foreign matter.

        Standard

        The washer rotates smoothly and there is no damage or foreign matter.

        HINT:

        • If there is any foreign matter on the spherical seat surface or bolt contact surface, clean it off.
        • Do not clean with oil or grease.
        • If any of the following conditions are met, replace the axle hub bolt with a new one.
          • The washer does not rotate smoothly, even after cleaning
          • Foreign matter cannot be removed
    2. Inspect the threaded part:

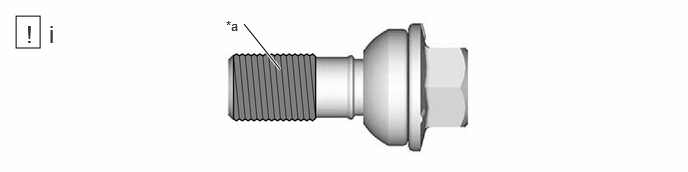

      GTY1138205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Threaded Part - -
      1. Check the threaded part of the axle hub bolt for damage or foreign matter.

        Standard

        There is no damage or foreign matter.

        HINT:

        • If there is any foreign matter, clean it off.
        • Do not clean with oil or grease.
        • If any of the following conditions are met, replace the axle hub bolt with a new one.
          • There is damage
          • Foreign matter cannot be removed
  2. INSPECT AXLE HUB BOLT (AXLE HUB BOLT WITH A WASHER (STOPPER RING TYPE))
    NOTE:

    Do not remove the stopper ring or washer from the axle hub bolt.

    If the stopper ring or washer is removed from the axle hub bolt, replace the axle hub bolt with a new one.
    1. Inspect the washer:

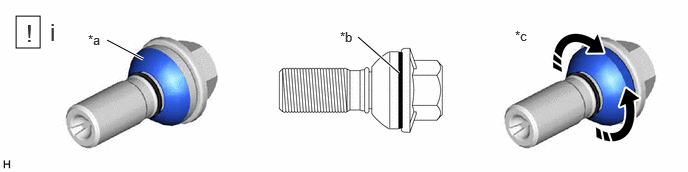

      GTY1123169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Seating Surface *b Contact Surface of the Bolt
      *c Rotates Smoothly - -
      1. Check the movement of the washer (spherical seat surface and bolt contact surface) of the axle hub bolt and confirm that there is no damage or foreign matter.

        Standard

        The washer rotates smoothly and there is no damage or foreign matter.

        HINT:

        • If there is any foreign matter on the spherical seat surface or bolt contact surface, clean it off without removing the stopper ring.
        • Do not clean with oil or grease.
        • If any of the following conditions are met, replace the axle hub bolt with a new one.
          • The washer does not rotate smoothly, even after cleaning
          • Foreign matter cannot be removed
          • The stopper ring has come off
    2. Inspect the stopper ring:
      GTY1127739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper Ring *b Stopper Ring Installation Groove
      1. Check that the stopper ring is not damaged or deteriorated (chipped, gouged, cut, fractured, split) and that there is no foreign matter.

        Standard

        There is no damage, deterioration or foreign matter.

        HINT:

        • If there is any foreign matter, clean it off without removing the stopper ring.
        • Do not clean with oil or grease.
        • If any of the following conditions are met, replace the axle hub bolt with a new one.
          • The stopper ring is damaged or deteriorated
          • Foreign matter cannot be removed
          • The stopper ring has come off
      2. Check the installation condition of the stopper ring.

        Standard

        Check that the stopper ring is installed to the stopper ring installation groove as shown in the illustration.

        HINT:

        If the stopper ring is not installed to the stopper ring installation groove as shown in the illustration, replace the axle hub bolt with a new one.

    3. Inspect the threaded part:
      GTY1126880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Threaded Part - -
      1. Check the threaded part of the axle hub bolt for damage or foreign matter.

        Standard

        There is no damage or foreign matter.

        HINT:

        • If there is any foreign matter, clean it off without removing the stopper ring.
        • Do not clean with oil or grease.
        • If any of the following conditions are met, replace the axle hub bolt with a new one.
          • There is damage
          • Foreign matter cannot be removed
          • The stopper ring has come off
  3. INSTALL WHEEL ASSEMBLY
    NOTE:
    • Check that there is no foreign matter or rust on the axle hub bolt hole threads and the contact surfaces of the wheel, brake disc, axle hub, etc. Clean the contact surfaces and axle hub bolts if necessary. If a wheel assembly is installed with foreign matter or rust between the contact surfaces, the foreign matter or rust may work loose. This may result in a reduction of the fastening force (axial force) leading to looseness or loss of one or more axle hub bolts.
    • When installing the axle hub bolts, check that the axle hub bolts rotate smoothly by hand. If the axle hub bolts do not rotate smoothly, check that there is no foreign matter or rust and clean if necessary. If the axle hub bolts still do not rotate smoothly, replace the axle hub and axle hub bolts with new ones.
    • Make sure to use the specified axle hub bolt for the vehicle and model.

      If an axle hub bolt for a vehicle or model other than specified is used, the axle hub bolt may become loose and possibly lead to a serious accident.

    HINT: Using a 17 mm impact socket wrench with cover, the axle hub bolts can be easily removed and installed without damaging the wheel assembly.

    Axle Hub Bolt Compatibility:

    GTY1138371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Compatible Axle Hub Bolt Examples *b Spherical Seat Type Axle Hub Bolt (without a Washer)
    *c Spherical Seat Type Axle Hub Bolt (Swage Type with a Washer) *d Spherical Seat Type Axle Hub Bolt (Stopper Ring Type with a Washer)
    *e Tapered Seat Type Axle Hub Bolt *f Flat Seat Type Axle Hub Nut
    *g Spherical Seat Type Wheel Assembly *h Flat Seat Type Wheel Assembly
    *i Tapered Seat Type Wheel Assembly *j Wheel Assembly
    NOTE:
    • *1: For the spherical seat type axle hub bolts, there is a type without a washer (*b), and a type with a washer (*c, *d).

      As the type without a washer and the type with a washer are a different shape, they are not compatible and cannot be mixed.

    • *2: Do not use "spherical seat type axle hub bolt (stopper ring type with a washer)" that is used for other models for steel wheels.

      The stopper ring may split.

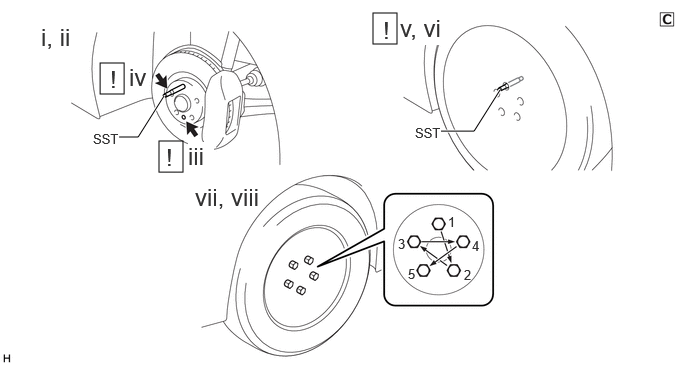

    1. Fig 1: Axle Hub Bolts Tightening Sequence
      GTY1073553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. If installing a rear wheel assembly, release the electronic parking brake.
      2. Rotate the axle hub so that one of the axle hub bolt holes (axle hub threaded part) is at the 12 o'clock position.
      3. Confirm that the installation bolt of the brake disc is securely tightened.

        for Front Brake (for 6-Pot Caliper): Refer to PROCEDURE - Step 3

        for Front Brake (except 6-Pot Caliper): Refer to PROCEDURE - Step 1

        for Rear Brake: Refer to PROCEDURE - Step 1

        NOTE:

        The mounting bolt for the brake disc must not under any circumstances protrude onto the contact surface between the brake disc and the wheel assembly.

      4. Install SST to the uppermost axle hub bolt hole.
        • SST: 09650-53010
        NOTE:

        Make sure that SST is securely installed.

      5. Install the wheel assembly using SST as a guide, and while centering the wheel assembly, install 4 axle hub bolts by hand.
        NOTE:
        • GTY968638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          Wheel Assembly Placement Area

          When placing the wheel assembly on SST, make sure to position the wheel assembly within the area shown in the illustration and do not apply excessive force.

        • Make sure the wheel assembly uniformly contacts the brake disc.
        • Do not apply oil or grease to the spherical seat of the axle hub bolts or wheel assembly.

        HINT:

        Use SST to facilitate alignment of wheel assembly with the axle hub bolt hole and to prevent the wheel assembly from falling.

      6. Remove SST, and install and tighten the remaining axle hub bolt by hand.
      7. Temporarily tighten the axle hub bolts in the order shown in the illustration.
      8. Lower the vehicle then fully tighten the axle hub bolts in the order shown in the illustration.

        Torque: 140 N.m (1428 kgf/cm, 103 ft.lbf)

  4. PERFORM INITIALIZATION

    for Tire pressure warning system: Refer to WORK PROCEDURE [10/2022 - 08/2023] , or refer to WORK PROCEDURE [08/2023 - ]

    HINT:

    Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System).

    for Parking assist monitor system: Refer to CALIBRATION [10/2022 - ]

    for Panoramic view monitor system: Refer to CALIBRATION [10/2022 - ]

    for Dynamic torque control AWD system: Refer to CALIBRATION [10/2022 - ]

    for Advanced park: Refer to CALIBRATION [10/2022 - ]
