Parts Location [10/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

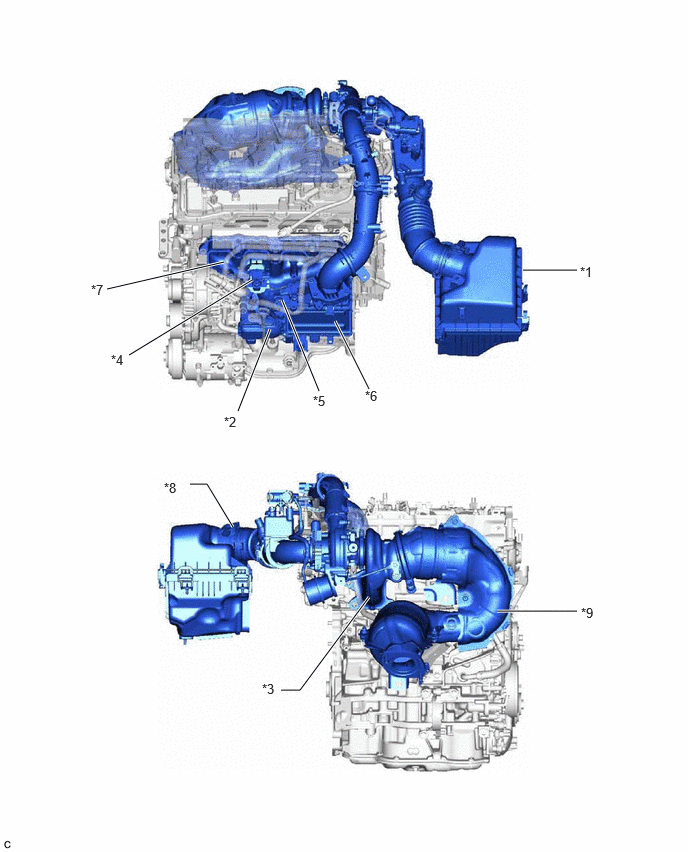

Intake System
| *1 | AIR CLEANER ASSEMBLY | *2 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *3 | TURBOCHARGER SUB-ASSEMBLY | *4 | NO. 1 TURBO PRESSURE SENSOR |
| *5 | NO. 2 TURBO PRESSURE SENSOR | *6 | INTERCOOLER ASSEMBLY |
| *7 | INTAKE MANIFOLD | *8 | MASS AIR FLOW METER SUB-ASSEMBLY |
| *9 | CONVERTER WITH CATALYST ASSEMBLY | - | - |
