Reassembly [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL RING PIN
    1. GTY1062941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT OIL PUMP BODY
    1. GTY1062939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT OIL PUMP DRIVEN GEAR
    1. GTY1062530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the front oil pump driven gear with Toyota Genuine ATF WS and install it to the front oil pump body.
  4. INSTALL FRONT OIL PUMP DRIVE GEAR
    1. GTY1061929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the front oil pump drive gear with Toyota Genuine ATF WS and install it to the front oil pump body.

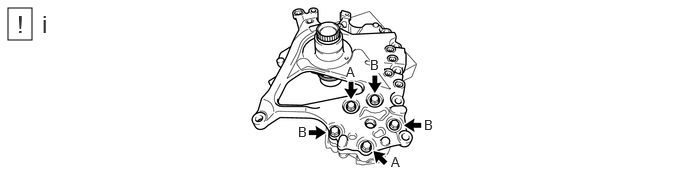

  5. INSTALL STATOR SHAFT ASSEMBLY
    1. GTY1062663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the stator shaft assembly to the front oil pump body with the 5 bolts.

        Torque: 9.1 N.m (93 kgf/cm, 81 in.lbf)

        Bolt Length

        Bolt (A) 50 mm (1.97 in.)
        Bolt (B) 45 mm (1.77 in.)

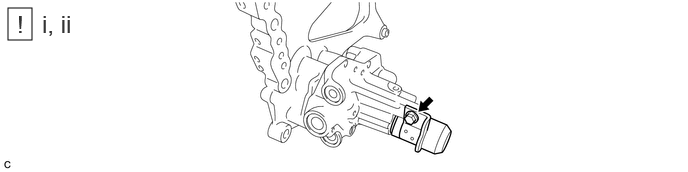

  6. INSTALL OIL PUMP WITH SOLENOID ASSEMBLY
    1. GTY1061716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the O-ring of the oil pump with solenoid assembly with Toyota Genuine ATF WS.
      2. Install the oil pump with solenoid assembly to the front oil pump cover sub-assembly with the bolt.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

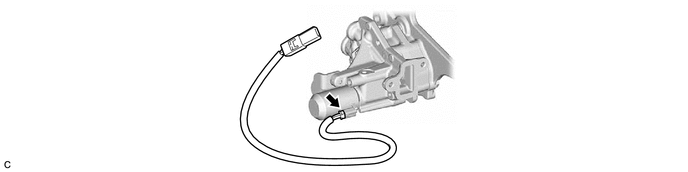

  7. INSTALL TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY)
    1. GTY1063110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL OIL STRAINER ASSEMBLY
    1. GTY1062272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, install a new oil strainer assembly to the front oil pump cover sub-assembly with the 2 bolts.

        Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  9. INSTALL CLUTCH DRUM OIL SEAL RING
    1. GTY1062879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply a small amount of MP grease to the entire circumference of the clutch drum oil seal ring installation groove portion.

        HINT:

        By applying MP grease, the wobble within the clutch drum oil seal ring installation groove will be eliminated, preventing damage to the clutch drum oil seal ring at the time of front oil pump assembly installation.

      2. Coat 4 new clutch drum oil seal rings with Toyota Genuine ATF WS and install them to the front oil pump assembly.
        NOTE:

        While making the spread of the opening of the clutch drum oil seal ring as small as possible, install it to the front oil pump assembly.

        If the ring opening is spread, briefly hold it closed with your fingers to return it to its original condition.
