Disassembly [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CLUTCH DRUM OIL SEAL RING
    1. GTY1063109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OIL STRAINER ASSEMBLY
    1. GTY1062272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, remove the 2 bolts and oil strainer assembly from the front oil pump cover sub-assembly.
  3. REMOVE TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY)
    1. GTY1063110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

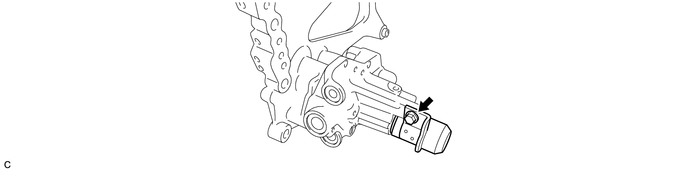

  4. REMOVE OIL PUMP WITH SOLENOID ASSEMBLY
    1. GTY1062572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STATOR SHAFT ASSEMBLY
    1. GTY1062577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT OIL PUMP DRIVE GEAR
    1. GTY1062578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT OIL PUMP DRIVEN GEAR
    1. GTY1062580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT OIL PUMP BODY
    1. GTY1062939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE RING PIN
    1. GTY1062941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
