Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during oil pump with solenoid assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of oil pump with solenoid assembly | Check the oil pump with solenoid assembly | Stop and Start System | Refer to REGISTRATION [10/2022 - ] |

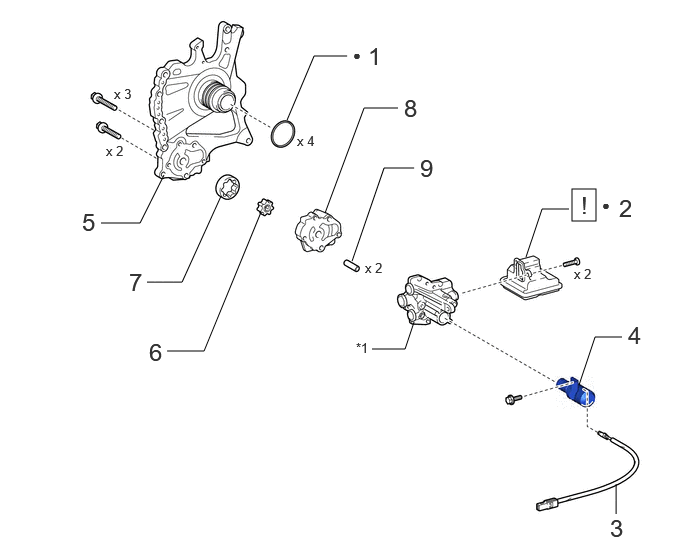

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CLUTCH DRUM OIL SEAL RING | 35617F | - | - | - |
| 2 | OIL STRAINER ASSEMBLY | 35330F | See step 2 | - | - |
| 3 | TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY) | - | - | - | - |
| 4 | OIL PUMP WITH SOLENOID ASSEMBLY | - | - | - | - |
| 5 | STATOR SHAFT ASSEMBLY | 35370 | - | - | - |
| 6 | FRONT OIL PUMP DRIVE GEAR | 35321 | - | - | - |
| 7 | FRONT OIL PUMP DRIVEN GEAR | 35322 | - | - | - |
| 8 | FRONT OIL PUMP BODY | 35311 | - | - | - |
| 9 | RING PIN | - | - | - | - |
| *1 | FRONT OIL PUMP COVER SUB-ASSEMBLY | - | - |
| • | Non-reusable part | - | - |
