Inspection [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT DIFFERENTIAL CASE ASSEMBLY

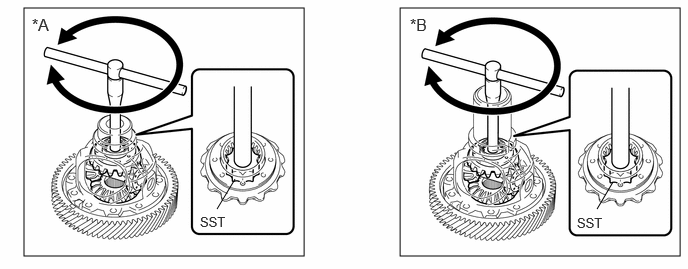

- Using SST, rotate the front differential side gear as shown in the illustration.
*A for UA81E *B for UA81F - SST: 09528-52010
- 09528-05030
Standard
The front differential side gear does not lock when rotated in either direction.
If the result is not as specified, replace the differential case assembly.
- SST: 09528-52010
- Using SST, rotate the front differential side gear as shown in the illustration.
