COMPONENTS (REASSEMBLY)

Fig 1: Automatic Transaxle Unit Reassembly Components With Torque Specifications (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	BEARING POSITION	-	See step 1	-	-
2	AUTOMATIC TRANSMISSION CASE STRAIGHT PIN	35101E	See step 2	-	-
3	COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE)	41206A	See step 3	-	-
4	COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE)	41206A	See step 4	-	-
5	COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE)	41206D	See step 5	-	-
6	COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE)	41206D	See step 6	-	-
7	ADJUST FRONT DIFFERENTIAL CASE TAPERED ROLLER BEARING PRELOAD	-	-	-	See step 7
8	ADJUST PINION AND COUNTER DRIVEN GEAR TAPERED ROLLER BEARING PRELOAD	-	-	-	See step 8

*A	for UA81E	*B	for UA81F
*1	PINION AND COUNTER DRIVEN GEAR SHIM	*2	DIFFERENTIAL CASE ASSEMBLY
*3	TRANSAXLE HOUSING	*4	AUTOMATIC TRANSAXLE CASE SUB-ASSEMBLY
*5	PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

Fig 2: Automatic Transaxle Unit Reassembly Components With Torque Specifications (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
9	NO. 1 BREATHER PLUG (ATM)	35104B	See step 9	-	-
10	NO. 2 TRANSAXLE CASE PLUG	35104R	See step 10	-	-
11	NO. 1 TRANSAXLE CASE PLUG	35104Q	See step 11	-	-
12	FRONT DRIVE SHAFT OIL SEAL LH	43420H	See step 12	-	-
13	MANUAL VALVE LEVER SHAFT OIL SEAL	-	See step 13	-	-
14	NEEDLE ROLLER BEARING	-	See step 14	-	-

*1	O-RING	*2	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS		MP grease
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

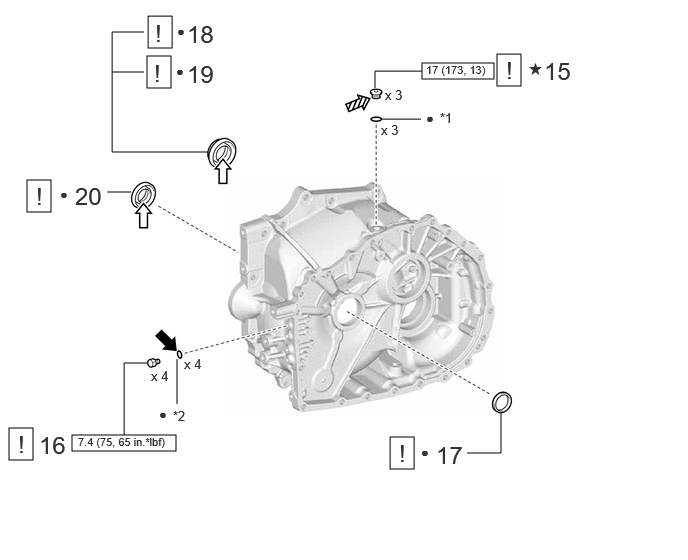

Fig 3: Automatic Transaxle Unit Reassembly Components With Torque Specifications (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
15	NO. 2 TRANSAXLE CASE PLUG	35104R	See step 15	-	-
16	NO. 1 TRANSAXLE CASE PLUG	35104Q	See step 16	-	-
17	NEEDLE ROLLER BEARING	35605C	See step 17	-	-
18	FRONT DRIVE SHAFT OIL SEAL RH (for UA81E)	43410M	See step 18	-	-
19	DIFFERENTIAL SIDE OIL SEAL (for UA81F)	41110G	See step 19	-	-
20	FRONT TRANSAXLE CASE OIL SEAL	31105D	See step 20	-	-

*1	GASKET	*2	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS		MP grease
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

Fig 4: Automatic Transaxle Unit Reassembly Components (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
21	1ST AND REVERSE BRAKE PISTON	35623H	See step 21	-	-
22	1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY	35068	See step 22	-	-
23	NO. 2 1ST AND REVERSE BRAKE PISTON	35623P	-	-	-
24	2ND BRAKE DISC	35682	See step 24	-	-
25	INSPECT CLEARANCE OF B-2 BRAKE	-	-	-	See step 25

*1	O-RING	*2	SNAP RING
*3	2ND BRAKE FLANGE	*4	2ND BRAKE PLATE
•	Non-reusable part		Toyota Genuine ATF WS

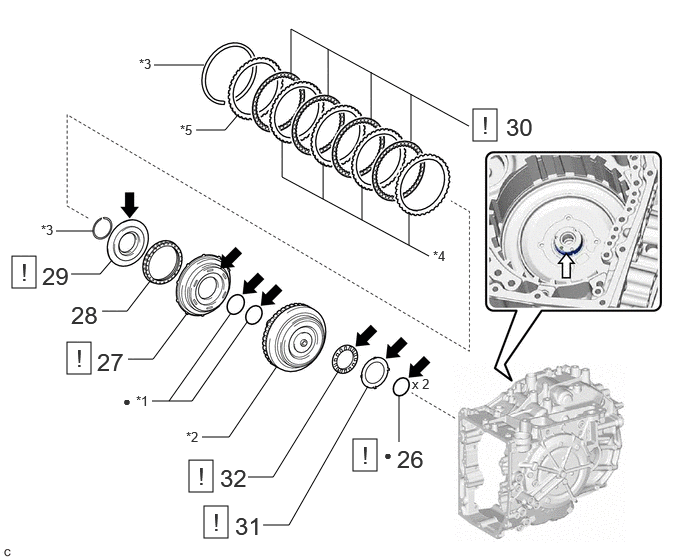

Fig 5: Automatic Transaxle Unit Reassembly Components (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
26	DIRECT CLUTCH DRUM OIL SEAL RING	35653B	See step 26	-	-
27	C-2 CLUTCH PISTON	35652E	See step 27	-	-
28	CLUTCH RETURN SPRING SUB-ASSEMBLY	35608N	-	-	-
29	C-2 CLUTCH BALANCER	35698A	See step 29	-	-
30	NO. 2 CLUTCH DISC	35667B	See step 30	-	-
31	NO. 1 THRUST BEARING RACE	35786A	See step 31	-	-
32	THRUST NEEDLE ROLLER BEARING	-	See step 32	-	-

*1	O-RING	*2	INTERMEDIATE SHAFT SUB-ASSEMBLY
*3	SNAP RING	*4	NO. 2 CLUTCH PLATE
*5	DIRECT CLUTCH FLANGE	-	-
•	Non-reusable part		Toyota Genuine ATF WS
	MP grease	-	-

Fig 6: Automatic Transaxle Unit Reassembly Components (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
33	C-2 CLUTCH ASSEMBLY	-	-	-	-
34	INSPECT CLEARANCE OF C-2 CLUTCH	-	-	-	See step 34
35	NO. 4 PLANETARY CARRIER THRUST WASHER	35729B	See step 35	-	-
36	REAR PLANETARY GEAR ASSEMBLY	35760	-	-	-
37	NO. 2 THRUST BEARING RACE	35787C	See step 37	-	-
38	THRUST NEEDLE ROLLER BEARING	-	See step 38	-	-
39	NO. 3 THRUST BEARING RACE	35788D	See step 39	-	-
40	REAR PLANETARY SUN GEAR SUB-ASSEMBLY	35707D	-	-	-
41	THRUST BEARING RACE	35789U	See step 41	-	-
42	THRUST NEEDLE ROLLER BEARING	-	See step 42	-	-
43	NO. 4 THRUST BEARING RACE	35785B	See step 43	-	-
44	PLANETARY SUN GEAR SUB-ASSEMBLY	35706V	-	-	-
45	NO. 3 PLANETARY CARRIER THRUST WASHER	35739	See step 45	-	-

Toyota Genuine ATF WS

Fig 7: Automatic Transaxle Unit Reassembly Components With Torque Specifications (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
46	NO. 1 BRAKE DISC	35681C	See step 46	-	-
47	COUNTER DRIVE GEAR SUB-ASSEMBLY	35704C	See step 47	-	-
48	INSPECT CLEARANCE OF B-1 BRAKE	-	-	-	See step 48

*1	NO. 1 BRAKE PLATE	*2	NO. 1 BRAKE FLANGE
*3	SNAP RING	*4	O-RING
*5	PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS		Do not apply lubricants to the threaded parts

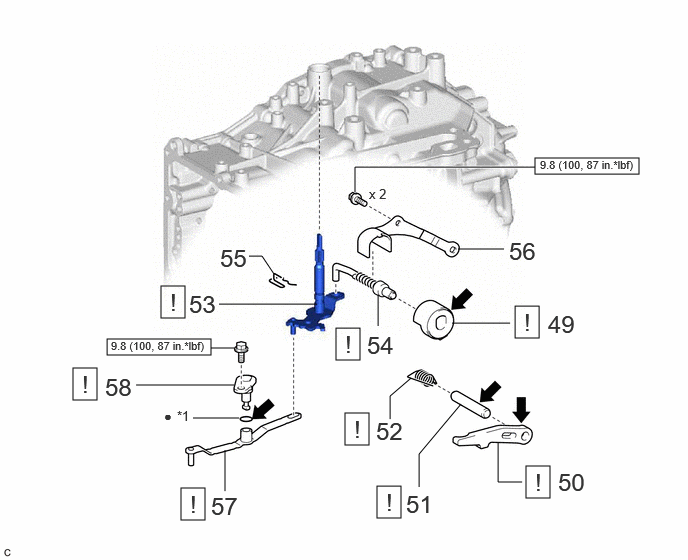

Fig 8: Automatic Transaxle Unit Reassembly Components With Torque Specifications (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
49	PARKING LOCK SLEEVE	35598	See step 49	-	-
50	PARKING LOCK PAWL	35557	See step 50	-	-
51	PARKING LOCK PAWL SHAFT	35556	See step 51	-	-
52	PARKING LOCK PAWL TORSION SPRING	35557A	See step 52	-	-
53	MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY	35506	See step 53	-	-
54	PARKING LOCK ROD SUB-ASSEMBLY	35501	See step 54	-	-
55	MANUAL VALVE LEVER SHAFT RETAINER SPRING	35506J	-	-	-
56	PAWL STOPPER PLATE	35596	-	-	-
57	MANUAL VALVE LEVER SUB-ASSEMBLY	35505	See step 57	-	-
58	MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY	35506	See step 58	-	-

*1	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

Fig 9: Automatic Transaxle Unit Reassembly Components With Torque Specifications (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
59	NO. 5 THRUST BEARING RACE	35775K	See step 59	-	-
60	THRUST NEEDLE ROLLER BEARING	-	See step 60	-	-
61	SUN GEAR INPUT HUB SUB-ASSEMBLY	35606M	-	-	-
62	FORWARD CLUTCH PISTON	35612B	See step 62	-	-
63	FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY	35603A	See step 63	-	-
64	NO. 1 CLUTCH BALANCER	35668	See step 64	-	-
65	FRONT CLUTCH DISC	35633	See step 65	-	-

*A	for TMMWV Made	-	-
*1	D-RING	*2	CLUTCH DRUM SUB-ASSEMBLY
*3	SNAP RING	*4	FORWARD MULTIPLE DISC CLUTCH PLATE
*5	FORWARD CLUTCH FLANGE	*6	NEEDLE ROLLER BEARING
•	Non-reusable part		Toyota Genuine ATF WS

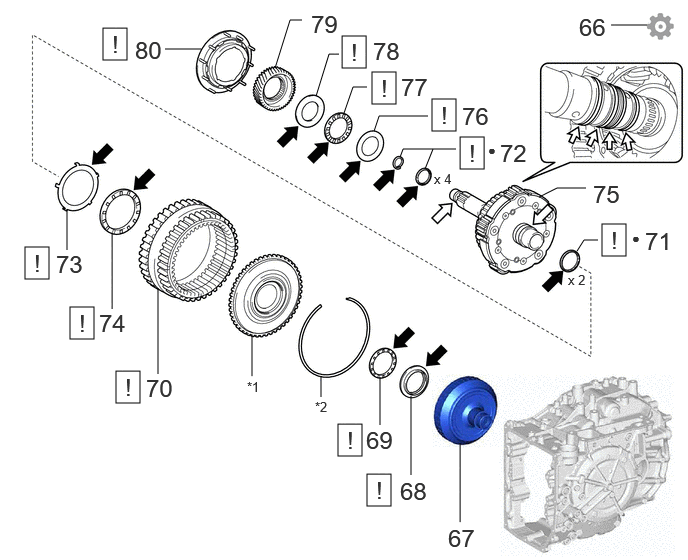

Fig 10: Automatic Transaxle Unit Reassembly Components (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
66	INSPECT CLEARANCE OF C-1 CLUTCH	-	-	-	See step 66
67	C-1 CLUTCH ASSEMBLY	-	-	-	-
68	NO. 6 THRUST BEARING RACE	35776	See step 68	-	-
69	THRUST NEEDLE ROLLER BEARING	-	See step 69	-	-
70	FRONT PLANETARY RING GEAR	35743	See step 70	-	-
71	REAR INPUT SHAFT OIL SEAL RING	35749B	See step 71	-	-
72	INPUT SHAFT OIL SEAL RING	35712E	See step 72	-	-
73	NO. 7 THRUST BEARING RACE	35777	See step 73	-	-
74	THRUST NEEDLE ROLLER BEARING	-	See step 74	-	-
75	FRONT PLANETARY GEAR ASSEMBLY	35720	-	-	-
76	NO. 8 THRUST BEARING RACE	35778	See step 76	-	-
77	THRUST NEEDLE ROLLER BEARING	-	See step 77	-	-
78	NO. 9 THRUST BEARING RACE	35779A	See step 78	-	-
79	PLANETARY SUN GEAR	35719B	-	-	-
80	NO. 2 PLANETARY CARRIER THRUST WASHER	35738	See step 80	-	-

*1	FRONT PLANETARY RING GEAR FLANGE	*2	SNAP RING
•	Non-reusable part		Toyota Genuine ATF WS
	MP grease	-	-

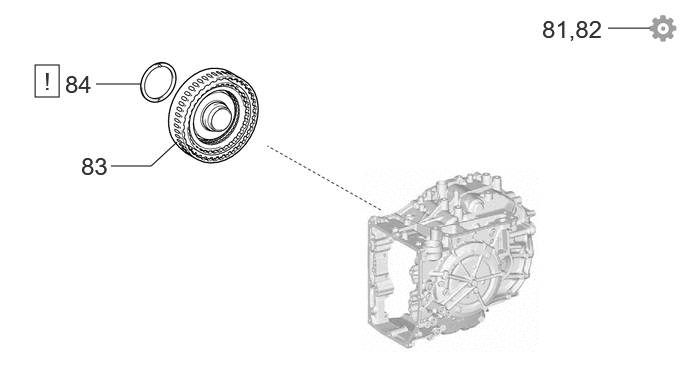

Fig 11: Automatic Transaxle Unit Reassembly Components (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
81	INSPECT CLEARANCE OF C-4 CLUTCH	-	-	-	See step 81
82	INSPECT CLEARANCE OF C-3 CLUTCH	-	-	-	See step 82
83	C-3 AND C-4 CLUTCH ASSEMBLY	34610	-	-	-
84	PLANETARY CARRIER THRUST WASHER	35737	See step 84	-	-

Fig 12: Automatic Transaxle Unit Reassembly Components With Torque Specifications (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
85	FRONT OIL PUMP ASSEMBLY	-	See step 85	-	-
86	MANUAL DETENT SPRING SUB-ASSEMBLY	35409D	See step 86	-	-
87	OIL PUMP SPROCKET REAR THRUST WASHER	35355	See step 87	-	-
88	TRANSMISSION DRIVE CHAIN	35781C	See step 88	-	-
89	OIL PUMP SPROCKET FRONT THRUST WASHER	35354	See step 89	-	-
90	CLUTCH DRUM OIL SEAL RING	35617	See step 90	-	-
91	DIFFERENTIAL CASE ASSEMBLY	-	-	-	-

*A	for UA81E	*B	for UA81F
*1	TRANSMISSION OIL PUMP DRIVE SPROCKET	*2	OIL PUMP DRIVE SHAFT SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS		MP grease

Fig 13: Automatic Transaxle Unit Reassembly Components With Torque Specifications (13 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
92	TRANSMISSION LUBE APPLY TUBE	35847C	See step 92	-	-
93	DIFFERENTIAL GEAR LUBE APPLY TUBE	35882C	See step 93	-	-
94	TRANSMISSION OIL CLEANER MAGNET	35394	-	-	-
95	TRANSAXLE HOUSING OIL SEPARATOR	35174	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

Fig 14: Automatic Transaxle Unit Reassembly Components With Torque Specifications (14 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
96	TRANSAXLE HOUSING	35111C	See step 96	-	-
97	INSPECT INPUT SHAFT END PLAY	-	-	-	See step 97

*A	for AISIN Made	-	-
*1	TRANSAXLE CASE GASKET	*2	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

Fig 15: Automatic Transaxle Unit Reassembly Components With Torque Specifications (15 Of 19)

Callout - Procedure		Part Name Code
96	TRANSAXLE HOUSING	35111C	See step 96	-	-
97	INSPECT INPUT SHAFT END PLAY	-	-	-	See step 97

*A	for TMMWV Made	-	-
*1	TRANSAXLE CASE GASKET	*2	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS		Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
*	Precoated part	-	-

Fig 16: Automatic Transaxle Unit Reassembly Components With Torque Specifications (16 Of 19)

Callout - Procedure		Part Name Code
98	TRANSMISSION REVOLUTION SENSOR (NC)	89413S	-	-	-
99	TRANSMISSION REVOLUTION SENSOR (NT)	89413N	-	-	-
100	FRONT OIL PUMP COVER GASKET	35313	See step 100	-	-
101	TRANSAXLE CASE GASKET	35145E	See step 101	-	-
102	TRANSMISSION VALVE BODY ASSEMBLY	35410	See step 102	-	-
103	TRANSMISSION WIRE	82125J	See step 103	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

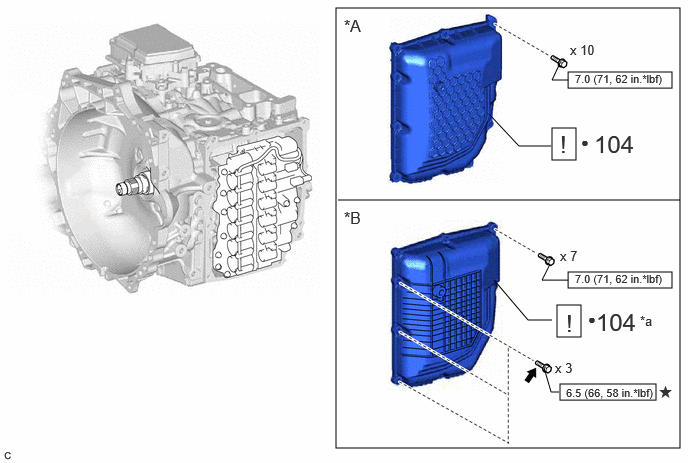

Fig 17: Automatic Transaxle Unit Reassembly Components With Torque Specifications (17 Of 19)

Callout - Procedure		Part Name Code
104	TRANSMISSION CASE SIDE COVER	35151F	See step 104	-	-

*A	for AISIN Made	*B	for TMMWV Made
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

Fig 18: Automatic Transaxle Unit Reassembly Components With Torque Specifications (18 Of 19)

Callout - Procedure		Part Name Code
105	NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY	32905	See step 105	-	-
106	OIL COOLER UNION SUB-ASSEMBLY	32901C	See step 106	-	-
107	NO. 1 TRANSMISSION OIL FILLER TUBE	35125C	See step 107	-	-
108	OVERFLOW PLUG	35405C	See step 108	-	-
109	REFILL PLUG	35015S	See step 109	-	-

*1	O-RING	*2	OIL COOLER UNION BOLT
*3	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part		Toyota Genuine ATF WS

Fig 19: Automatic Transaxle Unit Reassembly Components With Torque Specifications (19 Of 19)

Callout - Procedure		Part Name Code
110	SHIFT CONTROL ACTUATOR BRACKET	35541A	See step 110	-	-
111	SHIFT CONTROL ACTUATOR ASSEMBLY	35580B	See step 111	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

N.m (kgf/cm, ft.lbf): Specified torque
