COMPONENTS (DISASSEMBLY)

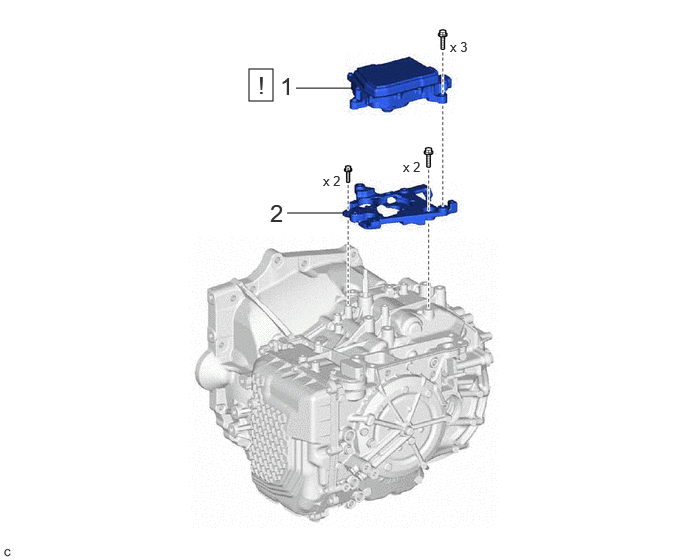

Fig 1: Automatic Transaxle Unit Disassembly Components (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	SHIFT CONTROL ACTUATOR ASSEMBLY	35580B	See step 1	-	-
2	SHIFT CONTROL ACTUATOR BRACKET	35541A	-	-	-

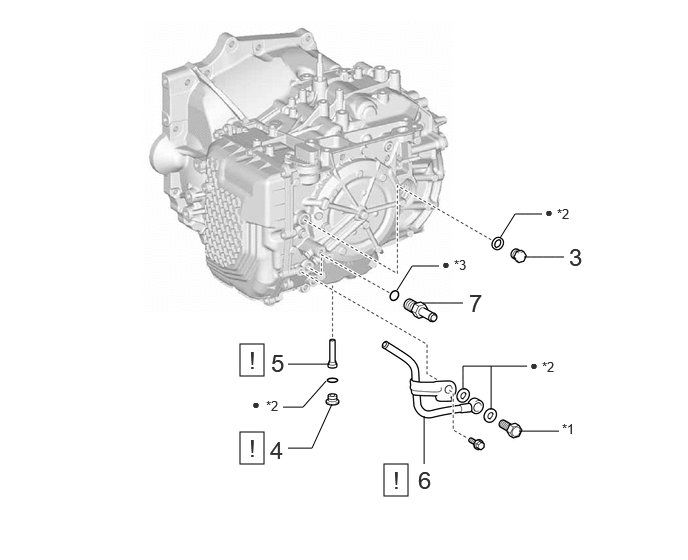

Fig 2: Automatic Transaxle Unit Disassembly Components (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	REFILL PLUG	35015S	-	-	-
4	OVERFLOW PLUG	35405C	See step 4	-	-
5	NO. 1 TRANSMISSION OIL FILLER TUBE	35125C	See step 5	-	-
6	OIL COOLER UNION SUB-ASSEMBLY	32901C	See step 6	-	-
7	NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY	32905	-	-	-

*1	OIL COOLER UNION BOLT	*2	GASKET
*3	O-RING	-	-
•	Non-reusable part	-	-

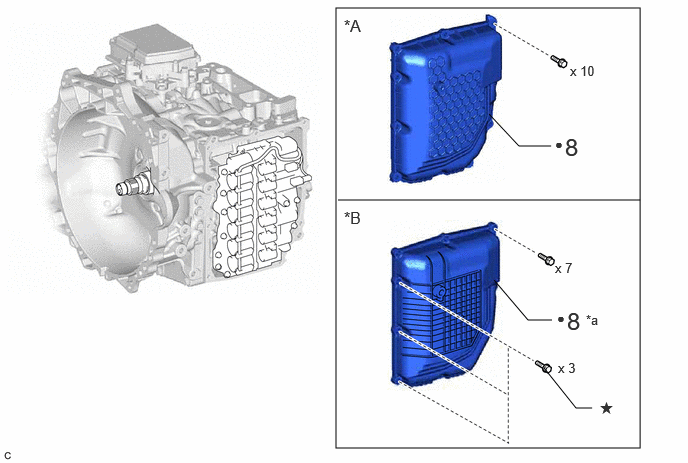

Fig 3: Automatic Transaxle Unit Disassembly Components (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
8	TRANSMISSION CASE SIDE COVER	35151F	-	-	-

*A	for AISIN Made	*B	for TMMWV Made
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-
•	Non-reusable part	*	Precoated part

Fig 4: Automatic Transaxle Unit Disassembly Components (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
9	TRANSMISSION WIRE	82125J	See step 9	-	-
10	TRANSMISSION VALVE BODY ASSEMBLY	35410	-	-	-
11	TRANSAXLE CASE GASKET	35145E	-	-	-
12	FRONT OIL PUMP COVER GASKET	35313	-	-	-
13	TRANSMISSION REVOLUTION SENSOR (NT)	89413N	-	-	-
14	TRANSMISSION REVOLUTION SENSOR (NC)	89413S	-	-	-

•

Non-reusable part

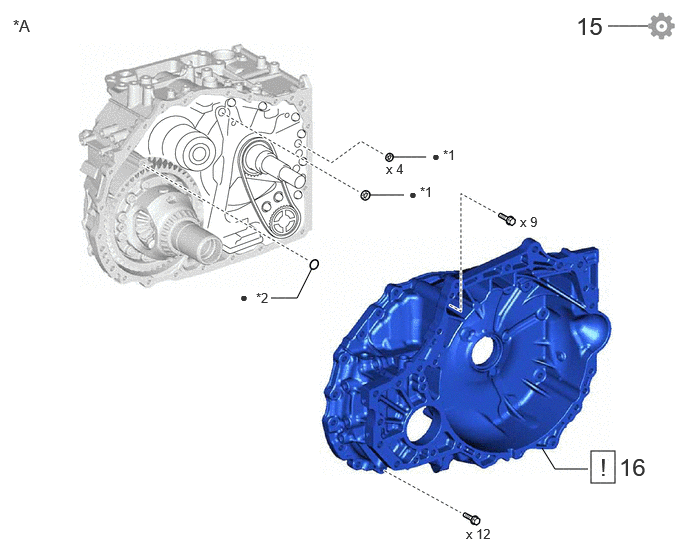

Fig 5: Automatic Transaxle Unit Disassembly Components (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
15	INSPECT INPUT SHAFT END PLAY	-	-	-	See step 15
16	TRANSAXLE HOUSING	35111C	See step 16	-	-

*A	for AISIN Made	-	-
*1	TRANSAXLE CASE GASKET	*2	O-RING
•	Non-reusable part	-	-

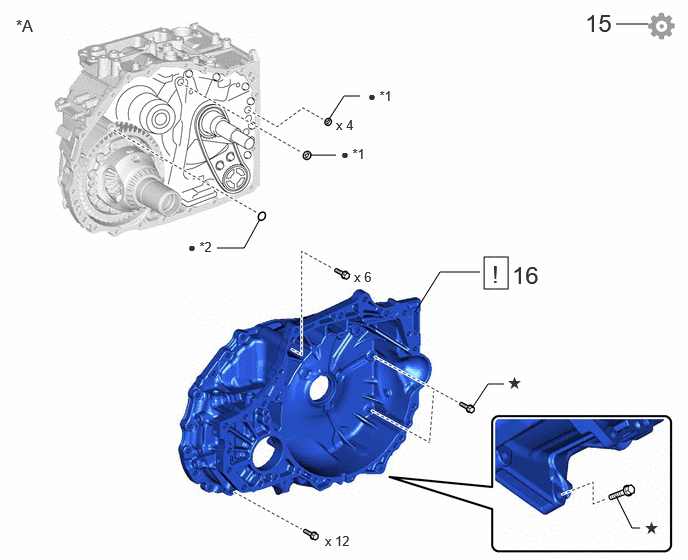

Fig 6: Automatic Transaxle Unit Disassembly Components (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
15	INSPECT INPUT SHAFT END PLAY	-	-	-	See step 15
16	TRANSAXLE HOUSING	35111C	See step 16	-	-

*A	for TMMWV Made	-	-
*1	TRANSAXLE CASE GASKET	*2	O-RING
•	Non-reusable part	*	Precoated part

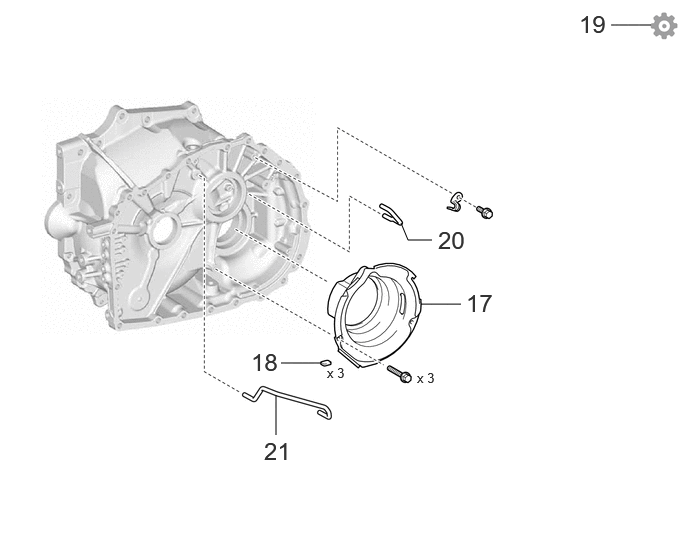

Fig 7: Automatic Transaxle Unit Disassembly Components (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
17	TRANSAXLE HOUSING OIL SEPARATOR	35174	-	-	-
18	TRANSMISSION OIL CLEANER MAGNET	35394	-	-	-
19	INSPECT TRANSMISSION OIL CLEANER MAGNET	35394	-	-	See step 19
20	DIFFERENTIAL GEAR LUBE APPLY TUBE	35882C	-	-	-
21	TRANSMISSION LUBE APPLY TUBE	35847C	-	-	-

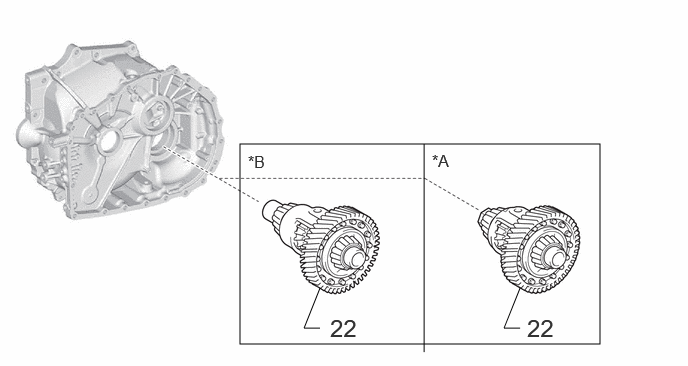

Fig 8: Automatic Transaxle Unit Disassembly Components (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
22	DIFFERENTIAL CASE ASSEMBLY	-	-	-	-

for UA81E

for UA81F

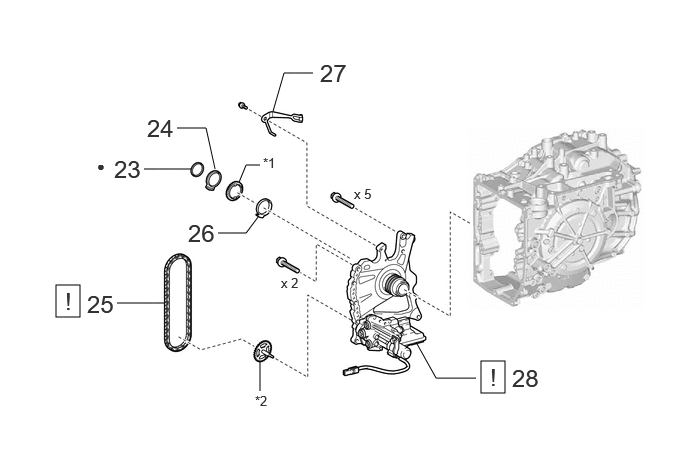

Fig 9: Automatic Transaxle Unit Disassembly Components (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
23	CLUTCH DRUM OIL SEAL RING	35617	-	-	-
24	OIL PUMP SPROCKET FRONT THRUST WASHER	35354	-	-	-
25	TRANSMISSION DRIVE CHAIN	35781C	See step 25	-	-
26	OIL PUMP SPROCKET REAR THRUST WASHER	35355	-	-	-
27	MANUAL DETENT SPRING SUB-ASSEMBLY	35409D	-	-	-
28	FRONT OIL PUMP ASSEMBLY	-	See step 28	-	-

*1	TRANSMISSION OIL PUMP DRIVE SPROCKET	*2	OIL PUMP DRIVE SHAFT SUB-ASSEMBLY
•	Non-reusable part	-	-

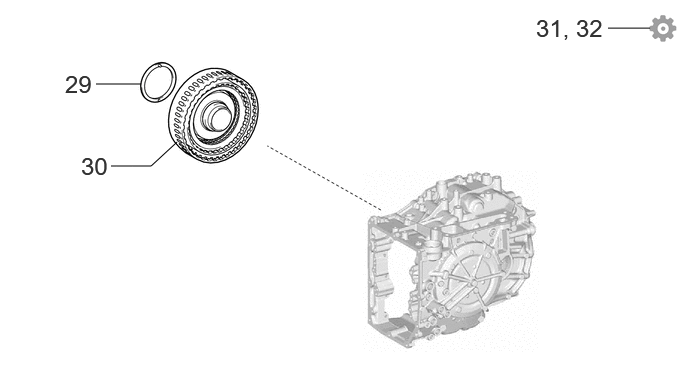

Fig 10: Automatic Transaxle Unit Disassembly Components (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
29	PLANETARY CARRIER THRUST WASHER	35737	-	-	-
30	C-3 AND C-4 CLUTCH ASSEMBLY	34610	-	-	-
31	INSPECT CLEARANCE OF C-3 CLUTCH	-	-	-	See step 31
32	INSPECT CLEARANCE OF C-4 CLUTCH	-	-	-	See step 32

Fig 11: Automatic Transaxle Unit Disassembly Components (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
33	NO. 2 PLANETARY CARRIER THRUST WASHER	35738	-	-	-
34	PLANETARY SUN GEAR	35719B	-	-	-
35	NO. 9 THRUST BEARING RACE	35779A	-	-	-
36	THRUST NEEDLE ROLLER BEARING	-	-	-	-
37	NO. 8 THRUST BEARING RACE	35778	-	-	-
38	FRONT PLANETARY GEAR ASSEMBLY	35720	-	-	-
39	THRUST NEEDLE ROLLER BEARING	-	-	-	-
40	NO. 7 THRUST BEARING RACE	35777	-	-	-
41	INSPECT FRONT PLANETARY GEAR ASSEMBLY	35720	-	-	See step 41
42	INPUT SHAFT OIL SEAL RING	35712E	-	-	-
43	REAR INPUT SHAFT OIL SEAL RING	35749B	-	-	-
44	FRONT PLANETARY RING GEAR	35743	-	-	-
45	FRONT PLANETARY RING GEAR FLANGE	35745	See step 45	-	-
46	THRUST NEEDLE ROLLER BEARING	-	-	-	-
47	NO. 6 THRUST BEARING RACE	35776	-	-	-
48	C-1 CLUTCH ASSEMBLY	-	-	-	-
49	INSPECT CLEARANCE OF C-1 CLUTCH	-	-	-	See step 49

*1	SNAP RING	-	-
•	Non-reusable part	-	-

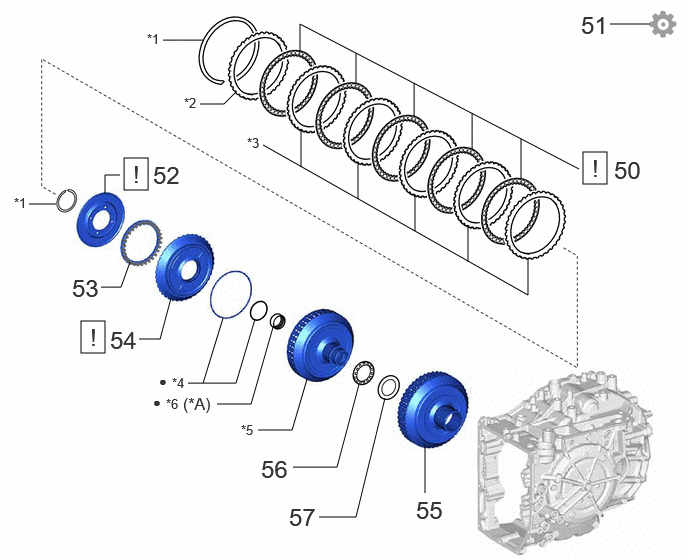

Fig 12: Automatic Transaxle Unit Disassembly Components (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
50	FRONT CLUTCH DISC	35633	See step 50	-	-
51	INSPECT FRONT CLUTCH DISC	35633	-	-	See step 51
52	NO. 1 CLUTCH BALANCER	35668	See step 52	-	-
53	FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY	35603A	-	-	-
54	FORWARD CLUTCH PISTON	35612B	See step 54	-	-
55	SUN GEAR INPUT HUB SUB-ASSEMBLY	35606M	-	-	-
56	THRUST NEEDLE ROLLER BEARING	-	-	-	-
57	NO. 5 THRUST BEARING RACE	35775K	-	-	-

*A	for TMMWV Made	-	-
*1	SNAP RING	*2	FORWARD CLUTCH FLANGE
*3	FORWARD MULTIPLE DISC CLUTCH PLATE	*4	D-RING
*5	CLUTCH DRUM SUB-ASSEMBLY	*6	NEEDLE ROLLER BEARING
•	Non-reusable part	-	-

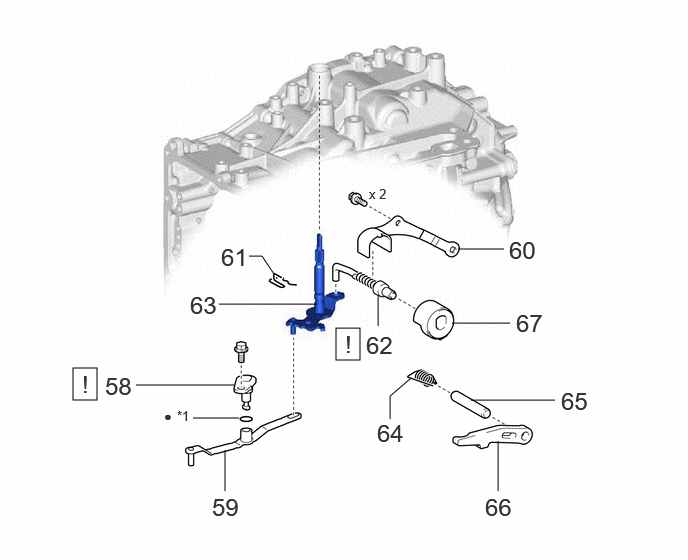

Fig 13: Automatic Transaxle Unit Disassembly Components (13 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
58	MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY	35506	See step 58	-	-
59	MANUAL VALVE LEVER SUB-ASSEMBLY	35505	-	-	-
60	PAWL STOPPER PLATE	35596	-	-	-
61	MANUAL VALVE LEVER SHAFT RETAINER SPRING	35506J	-	-	-
62	PARKING LOCK ROD SUB-ASSEMBLY	35501	See step 62	-	-
63	MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY	35506	-	-	-
64	PARKING LOCK PAWL TORSION SPRING	35557A	-	-	-
65	PARKING LOCK PAWL SHAFT	35556	-	-	-
66	PARKING LOCK PAWL	35557	-	-	-
67	PARKING LOCK SLEEVE	35598	-	-	-

*1	O-RING	-	-
•	Non-reusable part	-	-

Fig 14: Automatic Transaxle Unit Disassembly Components (14 Of 19)

Procedure		Part Name Code
68	INSPECT CLEARANCE OF B-1 BRAKE	-	-	-	See step 68
69	COUNTER DRIVE GEAR SUB-ASSEMBLY	35704C	See step 69	-	-
70	NO. 1 BRAKE DISC	35681C	See step 70	-	-
71	INSPECT NO. 1 BRAKE DISC	35681C	-	-	See step 71

*1	PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY	*2	O-RING
*3	SNAP RING	*4	NO. 1 BRAKE FLANGE
*5	NO. 1 BRAKE PLATE	-	-
•	Non-reusable part	-	-

Fig 15: Automatic Transaxle Unit Disassembly Components (15 Of 19)

Procedure		Part Name Code
72	NO. 3 PLANETARY CARRIER THRUST WASHER	35739	-	-	-
73	PLANETARY SUN GEAR SUB-ASSEMBLY	35706V	-	-	-
74	INSPECT PLANETARY SUN GEAR SUB-ASSEMBLY	35706V	-	-	See step 74
75	REAR PLANETARY SUN GEAR SUB-ASSEMBLY	35707D	-	-	-
76	REAR PLANETARY GEAR ASSEMBLY	35760	-	-	-
77	NO. 4 PLANETARY CARRIER THRUST WASHER	35729B	-	-	-
78	INSPECT REAR PLANETARY GEAR ASSEMBLY	35760	-	-	See step 78
79	NO. 4 THRUST BEARING RACE	35785B	-	-	-
80	THRUST NEEDLE ROLLER BEARING	-	-	-	-
81	THRUST BEARING RACE	35789U	-	-	-
82	NO. 3 THRUST BEARING RACE	35788D	-	-	-
83	INSPECT REAR PLANETARY SUN GEAR SUB-ASSEMBLY	35707D	-	-	See step 83
84	THRUST NEEDLE ROLLER BEARING	-	-	-	-
85	NO. 2 THRUST BEARING RACE	35787C	-	-	-
86	INSPECT CLEARANCE OF C-2 CLUTCH	-	-	-	See step 86
87	C-2 CLUTCH ASSEMBLY	-	-	-	-

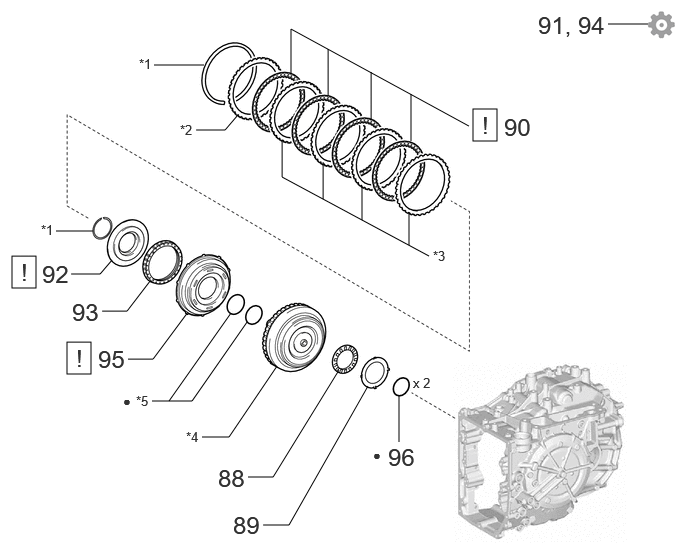

Fig 16: Automatic Transaxle Unit Disassembly Components (16 Of 19)

Procedure		Part Name Code
88	THRUST NEEDLE ROLLER BEARING	-	-	-	-
89	NO. 1 THRUST BEARING RACE	35786A	-	-	-
90	NO. 2 CLUTCH DISC	35667B	See step 90	-	-
91	INSPECT NO. 2 CLUTCH DISC	35667B	-	-	See step 91
92	C-2 CLUTCH BALANCER	35698A	See step 92	-	-
93	CLUTCH RETURN SPRING SUB-ASSEMBLY	35608N	-	-	-
94	INSPECT CLUTCH RETURN SPRING SUB-ASSEMBLY	35608N	-	-	See step 94
95	C-2 CLUTCH PISTON	35652E	See step 95	-	-
96	DIRECT CLUTCH DRUM OIL SEAL RING	35653B	-	-	-

*1	SNAP RING	*2	DIRECT CLUTCH FLANGE
*3	NO. 2 CLUTCH PLATE	*4	INTERMEDIATE SHAFT SUB-ASSEMBLY
*5	O-RING	-	-
•	Non-reusable part	-	-

Fig 17: Automatic Transaxle Unit Disassembly Components (17 Of 19)

Procedure		Part Name Code
97	INSPECT CLEARANCE OF B-2 BRAKE	-	-	-	See step 97
98	2ND BRAKE DISC	35682	See step 98	-	-
99	INSPECT 2ND BRAKE DISC	35682	-	-	See step 99
100	NO. 2 1ST AND REVERSE BRAKE PISTON	35623P	-	-	-
101	1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY	35068	See step 101	-	-
102	INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY	35068	-	-	See step 102
103	1ST AND REVERSE BRAKE PISTON	35623H	See step 103	-	-

*1	SNAP RING	*2	2ND BRAKE FLANGE
*3	2ND BRAKE PLATE	*4	O-RING
•	Non-reusable part	-	-

Fig 18: Automatic Transaxle Unit Disassembly Components (18 Of 19)

Procedure		Part Name Code
104	FRONT TRANSAXLE CASE OIL SEAL	31105D	See step 104	-	-
105	FRONT DRIVE SHAFT OIL SEAL RH (for UA81E)	43410M	See step 105	-	-
106	DIFFERENTIAL SIDE OIL SEAL (for UA81F)	41110G	See step 106	-	-
107	NEEDLE ROLLER BEARING	35605C	See step 107	-	-
108	COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE)	41206D	See step 108	-	-
109	COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE)	41206D	See step 109	-	-
110	COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE)	41206A	See step 110	-	-
111	COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE)	41206A	See step 111	-	-
112	NO. 1 TRANSAXLE CASE PLUG	35104Q	-	-	-
113	NO. 2 TRANSAXLE CASE PLUG	35104R	See step 113	-	-

*1	PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY	*2	PINION AND COUNTER DRIVEN GEAR SHIM
*3	O-RING	*4	GASKET
•	Non-reusable part	*	Precoated part

Fig 19: Automatic Transaxle Unit Disassembly Components (19 Of 19)

Procedure		Part Name Code
114	NEEDLE ROLLER BEARING	-	See step 114	-	-
115	MANUAL VALVE LEVER SHAFT OIL SEAL	-	See step 115	-	-
116	FRONT DRIVE SHAFT OIL SEAL LH	43420H	See step 116	-	-
117	NO. 1 TRANSAXLE CASE PLUG	35104Q	-	-	-
118	NO. 2 TRANSAXLE CASE PLUG	35104R	See step 118	-	-
119	NO. 1 BREATHER PLUG (ATM)	35104B	See step 119	-	-
120	AUTOMATIC TRANSMISSION CASE STRAIGHT PIN	35101E	-	-	-

*1	O-RING	*2	GASKET
•	Non-reusable part	*	Precoated part
