ECU Power Source Circuit [08/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

for THS-HEV model

GTY1206581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

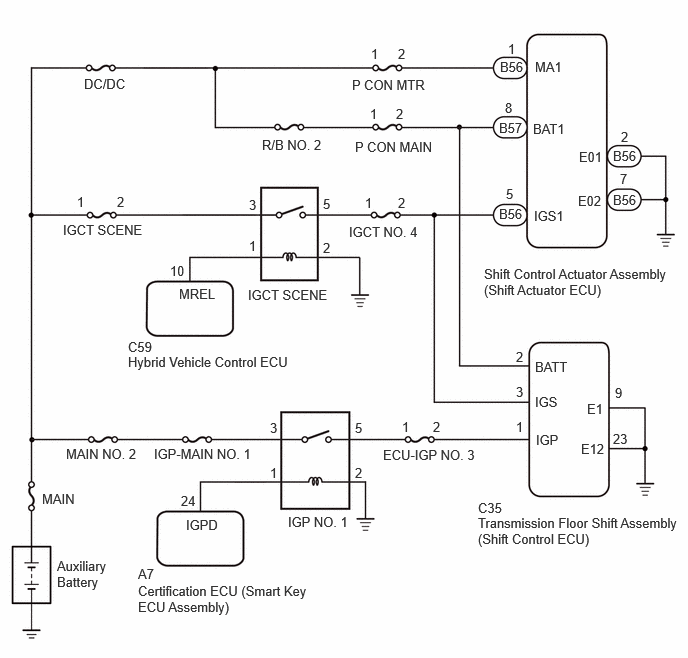

for PHEV model

GTY1207102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
