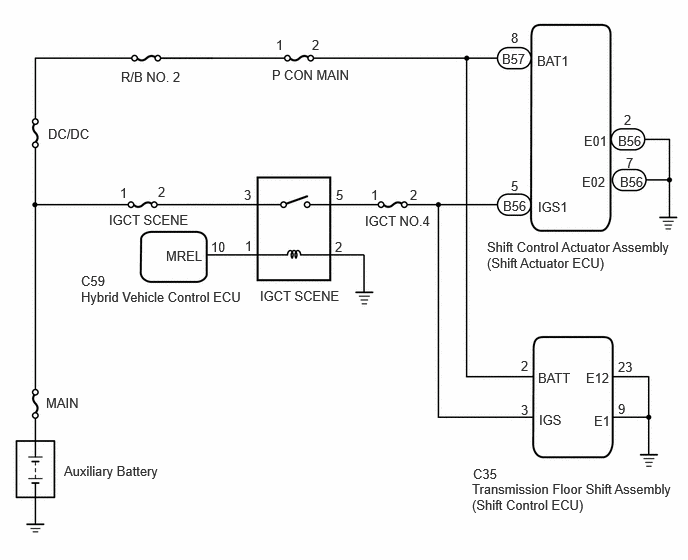

DTC P18A8-62: Gear Shift Control Module "A"/"B" IGCT-Scene Signal Compare Failure [08/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
