Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Steps 9 to 16 are temporary reassembly procedures for adjustment purposes.

COMPONENTS (REASSEMBLY)

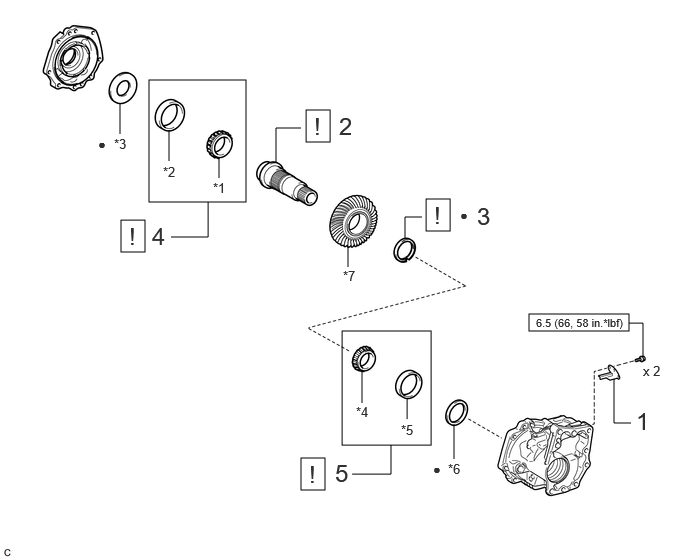

Fig 1: Transfer Assembly Reassembly Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	BREATHER OIL DEFLECTOR	36128B	-	-	-
2	TRANSFER RING GEAR MOUNTING CASE	41319	See step 2	-	-
3	SHAFT SNAP RING	36212L	See step 3	-	-
4	RING GEAR MOUNTING CASE BEARING RH	-	See step 4	-	-
5	RING GEAR MOUNTING CASE BEARING LH	-	See step 5	-	-

*1	RING GEAR MOUNTING CASE BEARING RH (INNER RACE)	*2	RING GEAR MOUNTING CASE BEARING RH (OUTER RACE)
*3	NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER	*4	RING GEAR MOUNTING CASE BEARING LH (INNER RACE)
*5	RING GEAR MOUNTING CASE BEARING LH (OUTER RACE)	*6	NO. 1 RING GEAR MOUNTING CASE WASHER
*7	TRANSFER RING GEAR	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

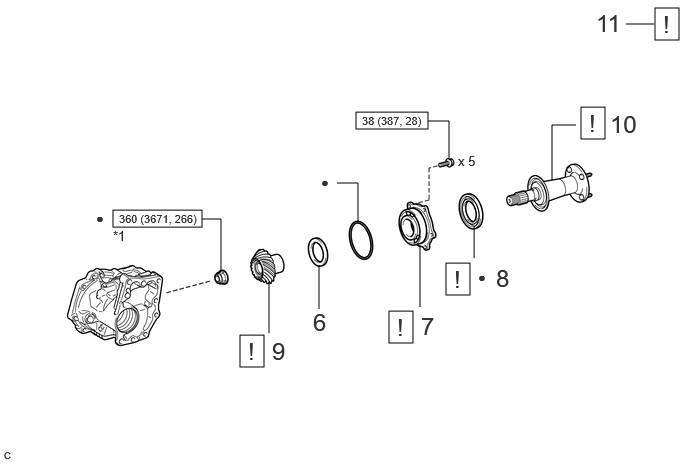

Fig 2: Transfer Assembly Reassembly Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
6	TRANSFER OUTPUT SHAFT WASHER	36275E	-	-	-
7	TRANSFER BEARING ASSEMBLY	36250	See step 7	-	-
8	REAR TRANSFER OUTPUT SHAFT DUST DEFLECTOR	33325A	See step 8	-	-
9	TRANSFER DRIVEN PINION	-	See step 9	-	-
10	REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY	36202	See step 10	-	-
11	INSPECT DRIVEN PINION PRELOAD	-	See step 11	-	-

*1	TRANSFER GEAR NUT	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

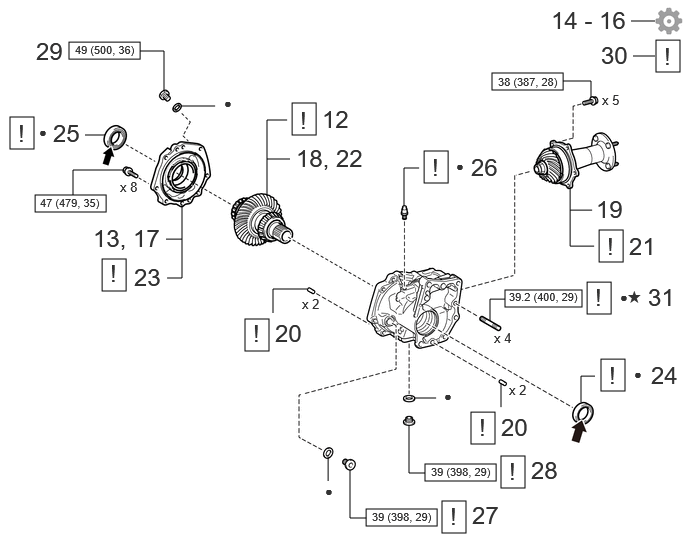

Fig 3: Transfer Assembly Reassembly Components With Torque Specifications (3 Of 3)

Callout - Procedure		Part Name Code
12	INSTALL TRANSFER RING GEAR	-	See step 12	-	-
13	INSTALL NO. 1 TRANSFER CASE COVER	36121	-	-	-
14	ADJUST RING GEAR BACKLASH	-	-	-	See step 14
15	ADJUST TOTAL PRELOAD	-	-	-	See step 15
16	ADJUST TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION	-	-	-	See step 16
17	REMOVE NO. 1 TRANSFER CASE COVER	36121	-	-	-
18	REMOVE TRANSFER RING GEAR	-	-	-	-
19	REMOVE REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY	36202	-	-	-
20	TRANSFER CASE STRAIGHT PIN	36111G	See step 20	-	-
21	INSTALL REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY	36202	See step 21	-	-
22	INSTALL TRANSFER RING GEAR	-	-	-	-
23	INSTALL NO. 1 TRANSFER CASE COVER	36121	See step 23	-	-
24	TRANSFER CASE OIL SEAL	36111B	See step 24	-	-
25	TRANSFER CASE OIL SEAL RH	36113D	See step 25	-	-
26	TRANSFER CASE BREATHER PLUG	36111H	See step 26	-	-
27	TRANSFER FILLER PLUG	36114L	See step 27	-	-
28	TRANSFER DRAIN PLUG	36114F	See step 28	-	-
29	NO. 1 TRANSFER CASE PLUG	36114B	-	-	-
30	TRANSFER ASSEMBLY	36100	See step 30	-	-
31	TRANSFER AND TRANSAXLE SETTING STUD BOLT	36100A	See step 31	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	*	Precoated part
