Installation [10/2022 - ]: Procedure

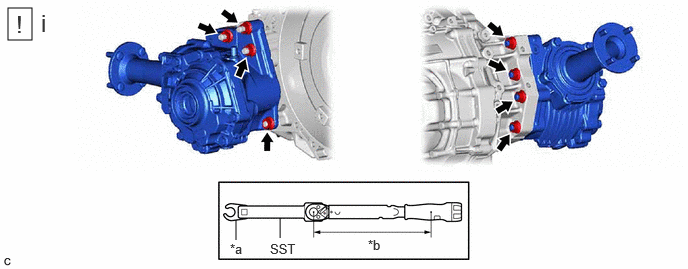

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   17 mm Union Nut Wrench

   *b

   Torque Wrench Fulcrum Length

   1. Using SST and a 17 mm union nut wrench, install the transfer assembly to the automatic transaxle assembly with the 8 nuts.
      • SST: 09961-00950

      Specified Tightening Torque

      Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [10/2022 - ]

      • When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 255 mm (10.0 in.)):

        40.2 N.m (410 kgf/cm, 30 ft.lbf)

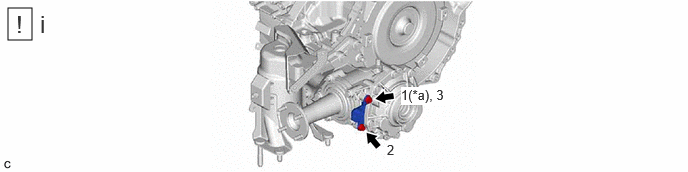

1. Fig 1: Propeller Shaft Heat Insulator Bracket Sub-Assembly No. 1 Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Temporarily Tighten

   -

   -

   1. Install the propeller shaft heat insulator bracket sub-assembly to the transfer assembly with the 2 bolts in the order shown in the illustration.

      Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

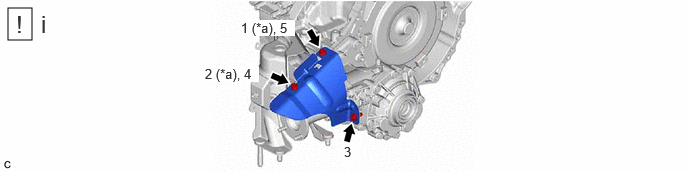

1. Fig 2: Propeller Shaft Heat Insulator Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Temporarily Tighten

   -

   -

   1. Install the propeller shaft heat insulator with the 3 bolts in the order shown in the illustration.

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

Refer to INSTALLATION [10/2022 - ]
