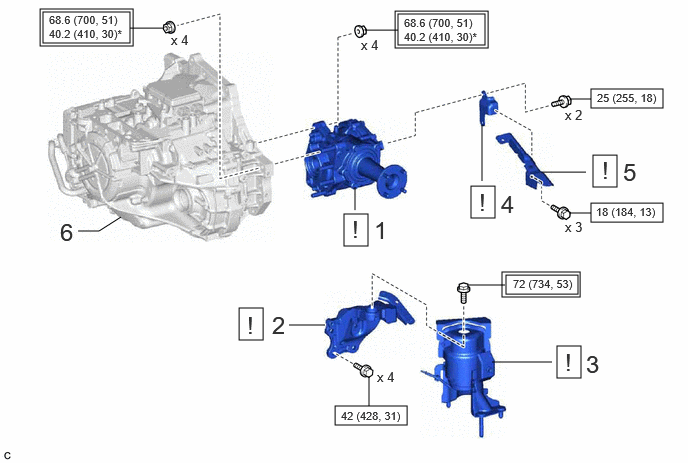

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TRANSFER ASSEMBLY | 36100 | See step 1 | - | - |
| 2 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | 12303 | See step 2 | - | - |
| 3 | REAR ENGINE MOUNTING INSULATOR | 12371A | See step 3 | - | - |
| 4 | PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY | 37109 | See step 4 | - | - |
| 5 | PROPELLER SHAFT HEAT INSULATOR | 37117 | See step 5 | - | - |
| 6 | AUTOMATIC TRANSAXLE ASSEMBLY | 30500 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with SST and a union nut wrench | - | - |
