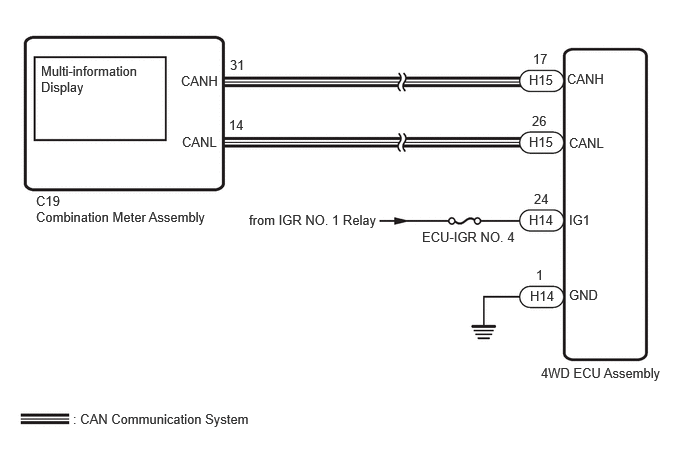

AWD Warning Remains ON [10/2022 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
GTY1129329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
