Installation [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LOWER RADIATOR SUPPORT
  2. INSTALL RADIATOR SUPPORT CUSHION
  3. INSTALL RADIATOR ASSEMBLY
    1. GTY1204935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 guides.
      2. Engage the 2 claws to install the fan with motor assembly to the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when installing the fan with motor assembly.

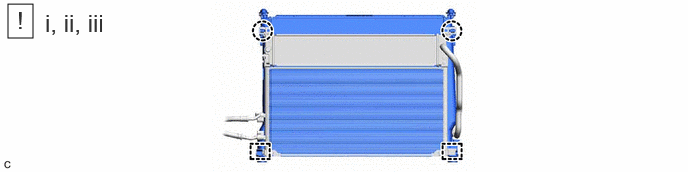

    2. GTY1204670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the radiator assembly with the fan with motor assembly to the vehicle body.
        NOTE:

        Do not apply excessive force to the cooler condenser assembly or pipe when installing the radiator assembly with the fan with motor assembly.

      2. Engage the 2 guides.
      3. Engage the 2 claws to install the cooler condenser assembly and radiator assembly (for Inverter Coolant) to the radiator assembly.
        NOTE:

        Make sure not to damage the cooler condenser assembly, radiator assembly (for Inverter Coolant) or radiator assembly when installing the cooler condenser assembly and radiator assembly (for Inverter Coolant).

    3. GTY1132730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 clamps to connect the wire harness to the fan with motor assembly.
      2. Connect the cooling fan motor connector and rotate the lever to lock it.
        NOTE:
        • When connecting the cooling fan motor connector, make sure that the connecting parts of the cooling fan motor connector are free of dirt, water or other foreign matter.
        • Be sure to securely connect the cooling fan motor connector.
      3. Engage the 2 clamps to connect the wire harness to the fan with motor assembly.
      4. Connect the cooling fan motor connector.
  4. CONNECT NO. 5 INVERTER COOLING HOSE
  5. CONNECT NO. 4 INVERTER COOLING HOSE
  6. CONNECT NO. 2 RADIATOR HOSE
    1. GTY1203614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Upper Side of Vehicle *d Right Side of Vehicle
      *e 2 to 5 mm (0.0787 to 0.197 in.) *f Paint Mark
      1. Connect the No. 2 radiator hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 2 radiator hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
      2. Engage the clamp to connect the No. 2 radiator hose to the fan with motor assembly.
  7. CONNECT NO. 1 RADIATOR HOSE

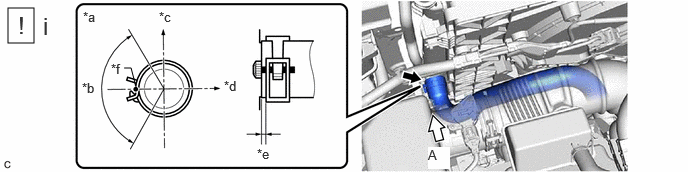

    1. GTY1204340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Upper Side of Vehicle *d Right Side of Vehicle
      *e 2 to 5 mm (0.0787 to 0.197 in.) *f Paint Mark
      1. Connect the No. 1 radiator hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 radiator hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  8. INSTALL FILLER NECK
    1. GTY1205380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Front Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 4 water by-pass hose to the filler neck and slide the clip to secure it.
        NOTE:
        • Align the direction of the claw on the clip with the paint mark on the hose.
        • Make sure the No. 4 water by-pass hose is securely inserted to the hose stopper.
    2. GTY1203788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 360° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Front Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 4 water by-pass hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Align the direction of the claw on the clip with the paint mark on the hose.
        • Make sure the No. 4 water by-pass hose is securely inserted to the hose stopper.
    3. Install the filler neck to the fan with motor assembly with the 2 bolts.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

  9. CONNECT NO. 6 WATER BY-PASS HOSE
  10. CONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1204999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Rear Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 5 water by-pass hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 5 water by-pass hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  11. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

  12. INSTALL HOOD LOCK ASSEMBLY
    Refer to PROCEDURE - Step 4
  13. INSTALL HOOD LOCK ASSEMBLY LH
    Refer to PROCEDURE - Step 5
  14. INSTALL HOOD LOCK CONTROL JUNCTION ASSEMBLY

    Refer to PROCEDURE - Step 6

  15. CONNECT HOOD LOCK CONTROL CABLE ASSEMBLY

    Refer to PROCEDURE - Step 7

  16. INSTALL HOOD LOCK CONTROL COVER

    Refer to PROCEDURE - Step 8

  17. INSTALL HOOD SUPPORT TENSION SPRING

    Refer to PROCEDURE - Step 15

  18. INSTALL NO. 1 RADIATOR AIR GUIDE RH
  19. INSTALL NO. 1 RADIATOR AIR GUIDE LH
  20. INSTALL THERMISTOR ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]

  21. CONNECT NO. 3 INVERTER COOLING HOSE
    Refer to PROCEDURE - Step 5
  22. INSTALL NO. 2 RADIATOR TO SUPPORT SEAL
  23. INSTALL INLET AIR CLEANER ASSEMBLY
  24. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT

    for Sport Package: Refer to PROCEDURE - Step 7

    except Sport Package: Refer to PROCEDURE - Step 7

  25. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    for Sport Package: Refer to PROCEDURE - Step 8

    except Sport Package: Refer to PROCEDURE - Step 8

  26. INSTALL FRONT BUMPER LOWER ABSORBER
  27. INSTALL FRONT BUMPER ENERGY ABSORBER
  28. INSTALL FRONT BUMPER ASSEMBLY

    for Sport Package: Refer to INSTALLATION [10/2022 - ]

    except Sport Package: Refer to INSTALLATION [10/2022 - ]

  29. ADD COOLANT (for Inverter)

    Refer to PROCEDURE - Step 2

  30. INSPECT FOR COOLANT LEAK (for Inverter)

    Refer to PROCEDURE - Step 1

  31. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 5

  32. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 1

  33. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [10/2022 - ]

  34. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 67

  35. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 68

  36. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
  37. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
