Terminals Of ECM [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

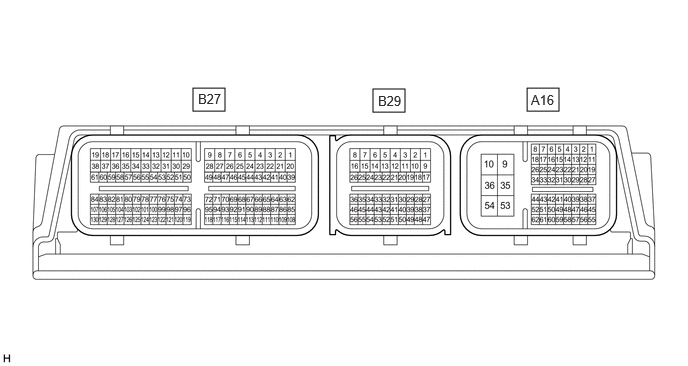

The standard voltage, resistance and waveform between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated. The result of checks should be compared with the standard voltage, resistance and waveform for each pair of the terminals as displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

*: except Mexico Models

1. WAVEFORM 1
   Fig 1: Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   ENGINE SPEED SIGNAL



   ECM Terminal Name	Between NEO and E1
   Tester Range	1 V/DIV., 2 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

2. WAVEFORM 2
   Fig 2: Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   VEHICLE SPEED SIGNAL



   ECM Terminal Name	Between SPD and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Driving at 20 km/h (12 mph)

   HINT:

   The wavelength becomes shorter as the vehicle speed increases.

3. WAVEFORM 3
   Fig 3: Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAN COMMUNICATION SIGNAL (REFERENCE)



   ECM Terminal Name	Between CANL and E1 Between CACL and E1 Between CAN- and E1
   Tester Range	1 V/DIV., 10 μs./DIV.
   Condition	Engine stopped, ignition switch ON

   HINT:

   The waveform varies depending on the CAN communication signal.

4. WAVEFORM 4
   Fig 4: Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAN COMMUNICATION SIGNAL (REFERENCE)



   ECM Terminal Name	Between CANH and E1 Between CACH and E1 Between CAN+ and E1
   Tester Range	1 V/DIV., 10 μs./DIV.
   Condition	Engine stopped, ignition switch ON

   HINT:

   The waveform varies depending on the CAN communication signal.

5. WAVEFORM 5
   Fig 5: Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   OIL PRESSURE CONTROL VALVE OPERATION SIGNAL



   ECM Terminal Name	CH1: Between VOP+ and E1 CH2: Between VOP- and E1
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

6. WAVEFORM 6
   Fig 6: Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR (SENSOR 2) HEATER OPERATION SIGNAL



   ECM Terminal Name	Between HA1B and E1
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling with cold engine

7. WAVEFORM 7
   Fig 7: Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR (SENSOR 1) HEATER OPERATION SIGNAL



   ECM Terminal Name	Between HA1A and E1
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling with cold engine

8. WAVEFORM 8
   Fig 8: Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   PURGE VSV OPERATION SIGNAL



   ECM Terminal Name	Between PRG and E1
   Tester Range	10 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine, under purge control

   HINT:

   If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

9. WAVEFORM 9
   Fig 9: Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   THROTTLE ACTUATOR OPERATION SIGNAL (POSITIVE TERMINAL)



   ECM Terminal Name	Between M+ and E1
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The duty ratio varies depending on the throttle actuator operation.

10. WAVEFORM 10
    Fig 10: Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR OPERATION SIGNAL (NEGATIVE TERMINAL)



    ECM Terminal Name	Between M- and E1
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

11. WAVEFORM 11
    Fig 11: Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT) OPERATION SIGNAL



    ECM Terminal Name	Between OC1+ and OC1-
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling

12. WAVEFORM 12
    Fig 12: Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (FOR HIGH PRESSURE SIDE)



    ECM Terminal Name	CH1: Between FP1+ and E1 CH2: Between FP1- and E1
    Tester Range	20 V/DIV., 500 μs./DIV.
    Condition	Idling with warm engine, Data List item "Injection Mode" displaying "Direct"

13. WAVEFORM 13
    Fig 13: Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DIRECT FUEL INJECTOR ASSEMBLY SIGNAL



    ECM Terminal Name	CH1: Between #1D+ and E1 CH2: Between #1D- and E1
    	CH1: Between #2D+ and E1 CH2: Between #2D- and E1
    	CH1: Between #3D+ and E1 CH2: Between #3D- and E1
    	CH1: Between #4D+ and E1 CH2: Between #4D- and E1
    Tester Range	50 V/DIV., 200 μs./DIV.
    Condition	Idling with warm engine, Data List item "Injection Mode" displaying "Direct"

14. WAVEFORM 14
    Fig 14: Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT) OPERATION SIGNAL



    ECM Terminal Name	Between OE1+ and OE1-
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling

15. WAVEFORM 15
    Fig 15: Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PORT FUEL INJECTOR ASSEMBLY SIGNAL



    ECM Terminal Name	Between #10 (to #40) and E1
    Tester Range	20 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine (Data List item "Injection Mode" displaying "Port")

    HINT:

    • The wavelength becomes shorter as the engine speed increases.
    • When the port injection injectors are operating, Port is displayed for Injection Mode of the Data List.
16. WAVEFORM 16
    Fig 16: Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COOLING FAN CONTROL SIGNAL



    ECM Terminal Name	Between RFC and E1
    Tester Range	1 V/DIV., 20 ms./DIV.
    Condition	Ignition switch ON, A/C switch on (max cool)

    HINT:

    The duty ratio varies depending on the engine coolant temperature.

17. WAVEFORM 17
    Fig 17: Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    IGNITION COIL ASSEMBLY SIGNAL (IGT SIGNAL)



    ECM Terminal Name	Between IGT (1 to 4) and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

18. WAVEFORM 18
    Fig 18: Waveform 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    MASS AIR FLOW METER SUB-ASSEMBLY SIGNAL



    ECM Terminal Name	Between VG and E2G
    Tester Range	1 V/DIV., 100 μs./DIV.
    Condition	Ignition switch ON

19. WAVEFORM 19
    Fig 19: Waveform 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT POSITION SENSOR SIGNAL



    ECM Terminal Name	CH1: Between VV1+ and VV1- CH2: Between EV1+ and EV1-
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

20. WAVEFORM 20
    Fig 20: Waveform 20

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CRANKSHAFT POSITION SENSOR SIGNAL



    ECM Terminal Name	Between NE+ and NE-
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

21. WAVEFORM 21
    Fig 21: Waveform 21

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    KNOCK CONTROL SENSOR SIGNAL



    ECM Terminal Name	Between KNK1 and EKNK
    Tester Range	1 V/DIV., 1 ms./DIV.
    Condition	Engine speed maintained at 4000 rpm after warming up the engine

    HINT:

    • The wavelength becomes shorter as the engine speed increases.
    • The waveforms and amplitudes displayed differ slightly depending on the vehicle.
