Parts Location [10/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

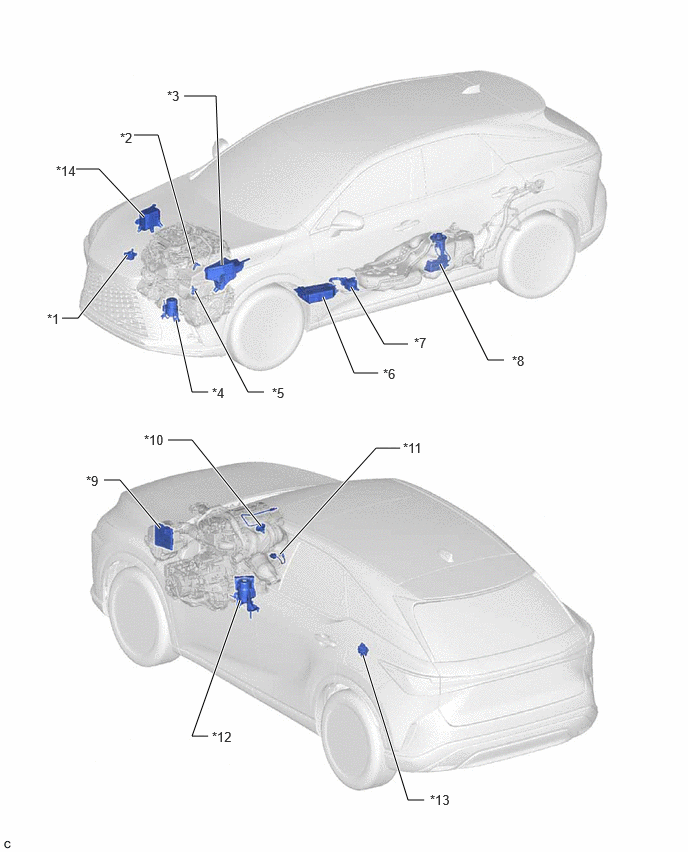

| *1 |
ELECTRIC WATER PUMP ASSEMBLY |
*2 |
MASS AIR FLOW METER SUB-ASSEMBLY |
| *3 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
*4 |
FRONT ENGINE MOUNTING INSULATOR |
| *5 |
VACUUM SWITCHING VALVE (for Active Control Engine Mount System) |
*6 |
CANISTER |
| *7 |
CANISTER PUMP MODULE |
*8 |
FUEL PUMP (for Low Pressure Side) |
| *9 |
ECM |
*10 |
AIR FUEL RATIO SENSOR (Sensor 1) |
| *11 |
AIR FUEL RATIO SENSOR (Sensor 2) |
*12 |
REAR ENGINE MOUNTING INSULATOR |
| *13 |
FUEL PUMP CONTROL ECU |
*14 |
NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
except Mexico Models |
- |
- |

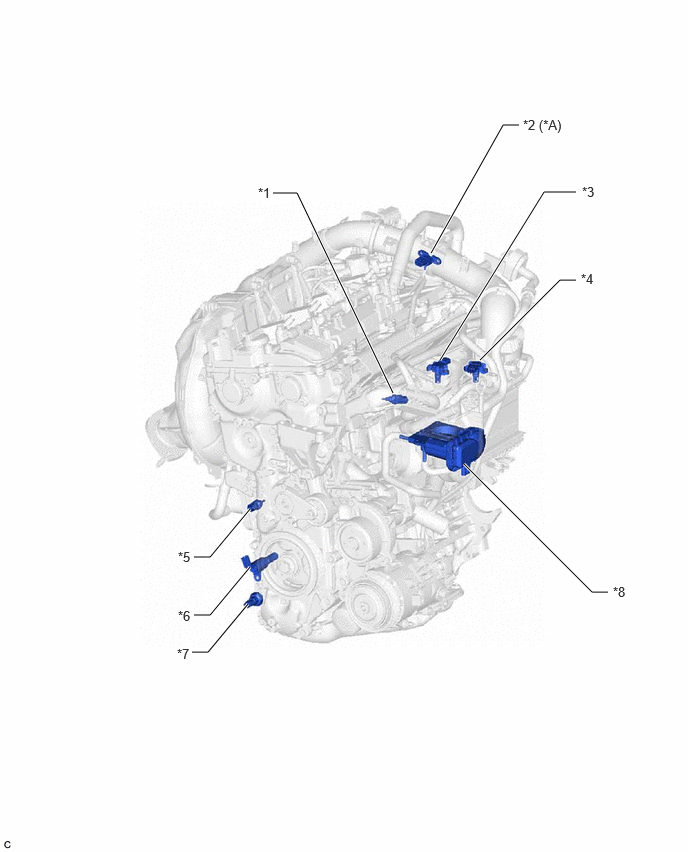

| *1 |
ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side) |
*2 |
VACUUM SENSOR ASSEMBLY |
| *3 |
NO. 1 TURBO PRESSURE SENSOR |
*4 |
NO. 2 TURBO PRESSURE SENSOR |
| *5 |
ENGINE OIL TEMPERATURE SENSOR |
*6 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *7 |
OIL PRESSURE SENDER GAUGE ASSEMBLY |
*8 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
*2 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *3 |
VACUUM PUMP ASSEMBLY |
*4 |
ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side) |
| *5 |
CRANKSHAFT POSITION SENSOR |
*6 |
WATER CONTROL VALVE |
| *7 |
ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

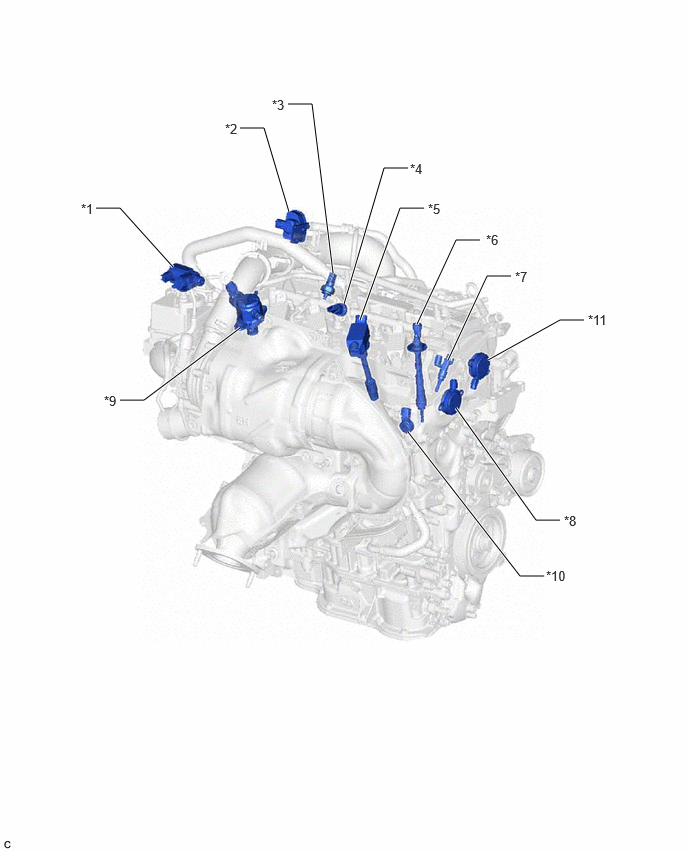

| *1 |
VACUUM REGULATING VALVE ASSEMBLY |
*2 |
PURGE VALVE (PURGE VSV) |
| *3 |
NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side) |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
IGNITION COIL ASSEMBLY |
*6 |
DIRECT FUEL INJECTOR ASSEMBLY |
| *7 |
PORT FUEL INJECTOR ASSEMBLY |
*8 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side) |
| *9 |
FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY |
*10 |
KNOCK CONTROL SENSOR |
| *11 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

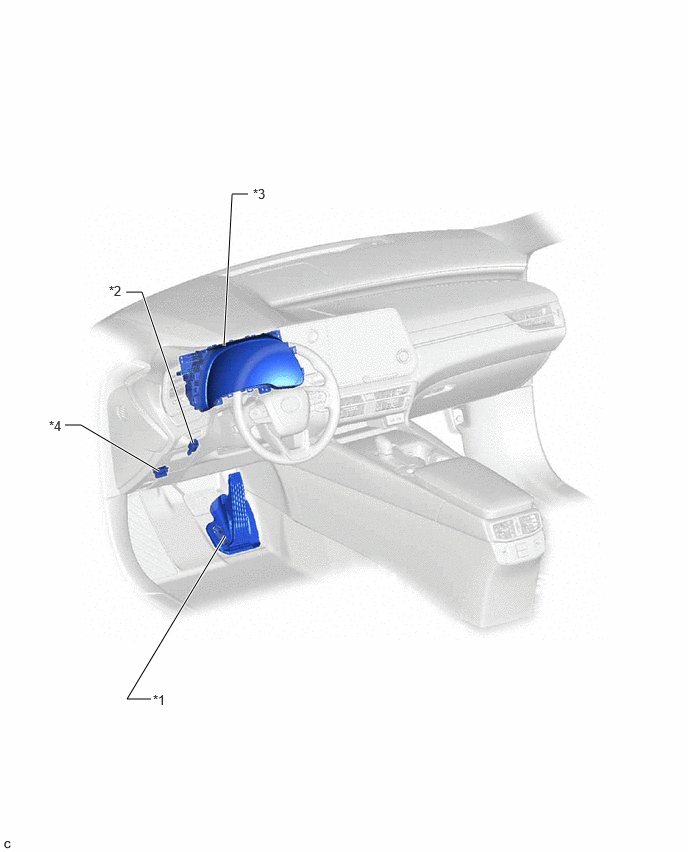

| *1 |
ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY |
*2 |
STOP LIGHT SWITCH |
| *3 |
COMBINATION METER ASSEMBLY |
*4 |
DLC3 |
