Removal [08/2023 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE COOLANT (for Engine)
Refer to REPLACEMENT [08/2023 - ]
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1
- REMOVE INLET AIR CLEANER ASSEMBLY
See step 4

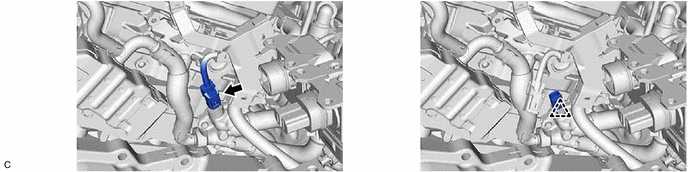

- REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.
- REMOVE HYBRID MOTOR CONTROL INVERTER ASSEMBLY
- for THS-HEV Model:
Refer to REMOVAL [10/2022 - ]
- for PHEV Model:
Refer to REMOVAL [08/2023 - ]
- for THS-HEV Model:
- REMOVE ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
