Removal [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

for HEV Model:
Refer to PROCEDURE - Step 19 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 19 [10/2024 - ]
for PHEV Model:
Refer to PROCEDURE - Step 19

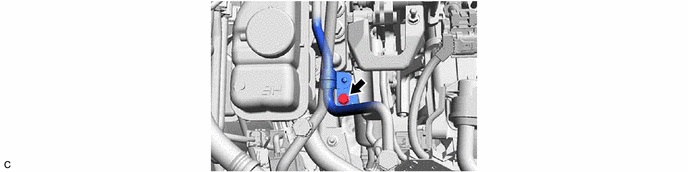

DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY (for PHEV Model)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

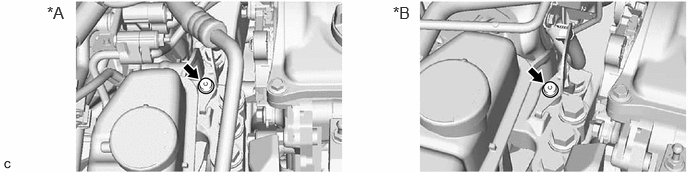

REMOVE EARTH BOLT CAP

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for PHEV Model

for HEV Model

DISCONNECT NO. 2 EARTH WIRE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for PHEV Model

for HEV Model

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Disconnect the cam timing oil control solenoid assembly connector.
Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE CAM TIMING OIL CONTROL SOLENOID O-RING

HINT:
Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.

Remove the cam timing oil control solenoid O-ring from the cam timing oil control solenoid assembly.
NOTE:
- When removing the cam timing oil control solenoid O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
- If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
