NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [10/2022 - ]
COMPONENTS (INSTALLATION)

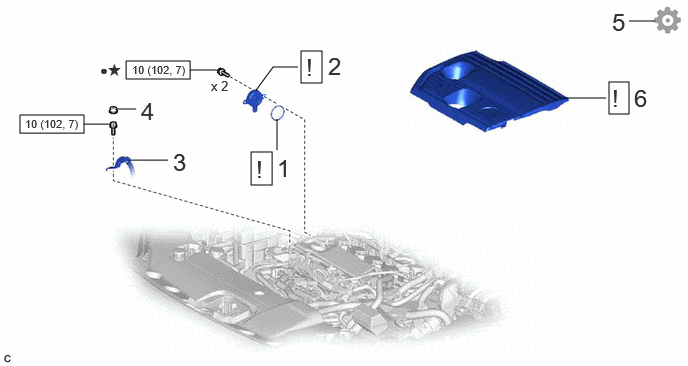

Fig 1: Camshaft Oil Control Solenoid Installation Components With Torque Specifications [10/2022 - 08/2023]
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CAM TIMING OIL CONTROL SOLENOID O-RING | 15370A | See step 1 | - | - |
| 2 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | 15370 | See step 2 | - | - |
| 3 | NO. 2 EARTH WIRE | 82286A | - | - | - |
| 4 | EARTH BOLT CAP | - | - | - | - |
| 5 | INSPECT FOR ENGINE OIL LEAK | - | - | - | See step 5 |
| 6 | NO. 1 ENGINE COVER SUB-ASSEMBLY | 12601B | See step 6 | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
