Replacement [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR DRIVE SHAFT ASSEMBLY
Refer to REMOVAL [08/2023 - ]

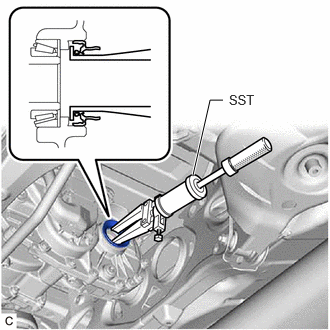

REMOVE REAR DRIVE SHAFT OIL SEAL LH

Using SST, remove the rear drive shaft oil seal LH from the rear traction motor with transaxle assembly.

SST: 09308-00010

NOTE:

Be careful not to damage the rear traction motor with transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

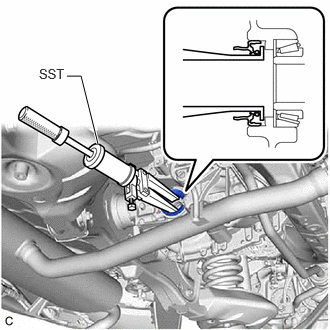

REMOVE REAR DRIVE SHAFT OIL SEAL RH

Using SST, remove the rear drive shaft oil seal RH from the rear traction motor with transaxle assembly.

SST: 09308-00010

NOTE:

Be careful not to damage the rear traction motor with transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

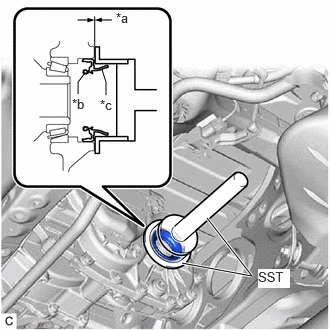

INSTALL REAR DRIVE SHAFT OIL SEAL RH

Coat the lip of a new rear drive shaft oil seal RH with a small amount of MP grease.

Using SST and a hammer, install the rear drive shaft oil seal RH to the rear traction motor with transaxle assembly.

SST: 09316-20011
SST: 09517-30010

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Depth
*b	Inner Lip
*c	Outer Lip

NOTE:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Correct
*b	Incorrect
*c	Outer Lip

Make sure that the outer lip of the rear drive shaft oil seal RH is not pinched by SST.
Do not allow foreign matter to attach to the inner lip and outer lip of the rear drive shaft oil seal RH.
Do not install the rear drive shaft oil seal RH at an angle.
Do not remove the grease from the inner lip and outer lip of the rear drive shaft oil seal RH.

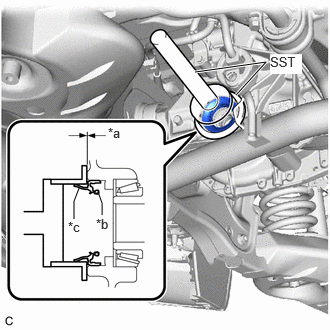

INSTALL REAR DRIVE SHAFT OIL SEAL LH

Coat the lip of a new rear drive shaft oil seal LH with a small amount of MP grease.

Using SST and a hammer, install the rear drive shaft oil seal LH to the rear traction motor with transaxle assembly.

SST: 09316-20011
SST: 09517-30010

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

*a	Depth
*b	Inner Lip
*c	Outer Lip

NOTE:

*a	Correct
*b	Incorrect
*c	Outer Lip

Make sure that the outer lip of the rear drive shaft oil seal LH is not pinched by SST.
Do not allow foreign matter to attach to the inner lip and outer lip of the rear drive shaft oil seal LH.
Do not install the rear drive shaft oil seal LH at an angle.
Do not remove the grease from the inner lip and outer lip of the rear drive shaft oil seal LH.

INSTALL REAR DRIVE SHAFT ASSEMBLY
Refer to INSTALLATION [08/2023 - ]
