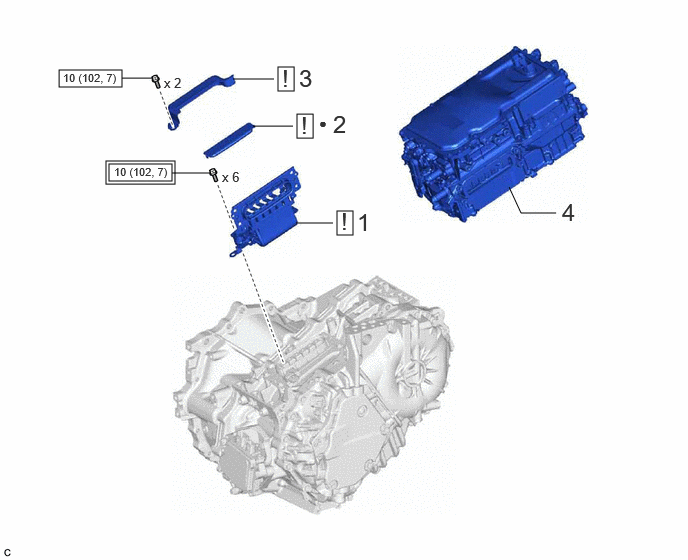

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | MOTOR CABLE | G1148 | See step 1 | - | - |
| 2 | TERMINAL CAP | 82823M | See step 2 | - | - |
| 3 | CONNECTOR COVER | 82821T | See step 3 | - | - |
| 4 | HYBRID MOTOR CONTROL INVERTER ASSEMBLY | G92A0 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
