The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during hybrid vehicle transaxle assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*1	Refer to INITIALIZATION [10/2022 - ]
Replacement of ECM	Perform Vehicle Identification Number (VIN) registration	DTC is output	Refer to REGISTRATION [10/2022 - ]
	ECU configuration	-	Refer to ECU CONFIGURATION [10/2022 - ]
	Update ECU security key	Vehicle Control History (RoB) are stored	Refer to UPDATE ECU SECURITY KEY [10/2022 - ]
Replacement of hybrid motor control inverter assembly	Resolver learning	DTCs are stored Slight vibration at a vehicle speed of 5 km/h (3 mph) or less Shock or vibration during acceleration	Refer to UTILITY [10/2022 - ]
Replacement of hybrid vehicle transaxle assembly	Resolver learning Initialize resolver	DTCs are stored Slight vibration at a vehicle speed of 5 km/h (3 mph) or less Shock or vibration during acceleration	Refer to UTILITY [10/2022 - ]
Tires	Initialization23 Tire Position Identification23	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [10/2022 - 08/2023]
	Rear television camera assembly optical axis (Back camera position setting)*4	Parking Assist Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization*4	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization*4	Advanced Park	Refer to CALIBRATION [10/2022 - ]
Replacement of engine assembly Gas leak from exhaust system is repaired	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [10/2022 - ]
Replacement of front bumper assembly*5	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
Replacement of front bumper assembly*5	Front television camera view adjustment	Advanced Park	Refer to CALIBRATION [10/2022 - ]
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [10/2022 - ]
	Perform headlight ECU sub-assembly LH initialization	Lighting System (w/ Automatic Headlight Beam Level Control System)	Refer to INITIALIZATION [10/2022 - ]
Front wheel alignment adjustment	Perform "Calibration"	DTCs are stored ABS warning light illuminates Slip indicator light illuminates Electronically controlled brake system does not operate correctly	Refer to RESET MEMORY / CALIBRATION [10/2022 - ]

*1: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

*2: Also necessary after performing a tire rotation.

*3: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*4: The vehicle height changes because of tire replacement.

*5: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

WARNING:

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information .

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [10/2022 - ]

To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the appropriate service information , or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	An Object Exceeding Weight Limit of Engine Lifter

The hybrid vehicle transaxle assembly is very heavy. Be sure to follow the procedure described in the appropriate service information , or the transmission jack may suddenly drop or a part may fall.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	An Object Exceeding Weight Limit of Transmission Jack

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [10/2022 - ]
When disconnecting a wire harness of any component connected to the supply power of the integrated capacitor (integration control supply) or when removing the integrated capacitor (integration control supply), make sure to wait 5 minutes or more after turning the ignition switch off for self-diagnosis to complete and the voltage of the integrated capacitor (integration control supply) to discharge.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [10/2022 - ]
Adaptive High Beam System
Lighting System (w/ Automatic Headlight Beam Level Control System)

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [10/2022 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

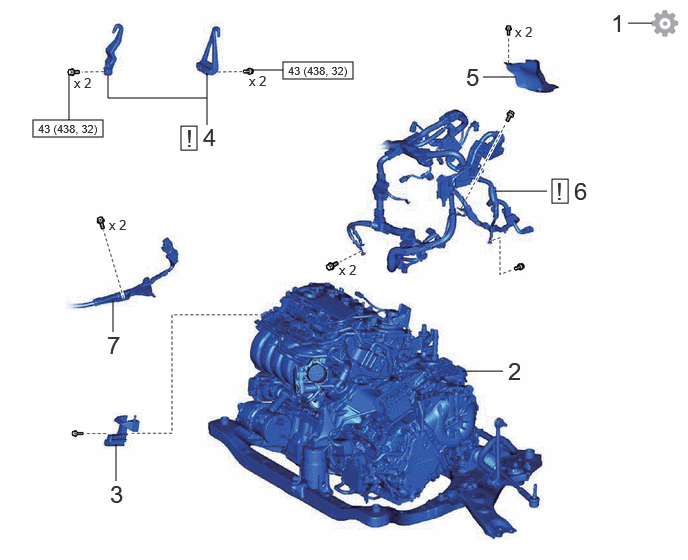

Fig 1: Hybrid Vehicle Transaxle Removal Components With Torque Specifications [10/2022 - 08/2023] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	PERFORM RESOLVER INITIALIZATION	-	-	-	See step 1
2	ENGINE ASSEMBLY WITH TRANSAXLE	-	-	-	-
3	FUEL DELIVERY GUARD	23825A	-	-	-
4	ENGINE HANGERS	-	See step 4	-	-
5	STEERING GEAR HEAT INSULATOR	45319	-	-	-
6	ENGINE WIRE	82121	See step 6	-	-
7	HV AIR CONDITIONING WIRE	821H2	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

Fig 2: Hybrid Vehicle Transaxle Removal Components [10/2022 - 08/2023] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
8	TRANSAXLE UNDER STOPPER BRACKET	33185B	-	-	-
9	NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY	32930G	-	-	-
10	NO. 1 MOTOR COOLING PIPE	G1251B	See step 10	-	-
11	WIRE HARNESS CLAMP BRACKET	-	-	-	-
12	OIL PUMP WITH MOTOR ASSEMBLY	35300B	-	-	-
13	FLYWHEEL HOUSING SIDE COVER	11363A	-	-	-

*1	NO. 2 OIL COOLER TUBE CLAMP	-	-
•	Non-reusable part	-	-

Fig 3: Hybrid Vehicle Transaxle Removal Components [10/2022 - 08/2023] (3 Of 6)

Procedure		Part Name Code
14	FRONT FRAME ASSEMBLY	51100G	-	-	-
15	FRONT ENGINE MOUNTING INSULATOR	12361A	-	-	-
16	FRONT ENGINE MOUNTING BRACKET	12311A	-	-	-
17	REAR ENGINE MOUNTING INSULATOR	12371A	-	-	-
18	REAR ENGINE MOUNTING BRACKET	12303	-	-	-

Fig 4: Hybrid Vehicle Transaxle Removal Components [10/2022 - 08/2023] (4 Of 6)

Procedure		Part Name Code
19	HYBRID VEHICLE TRANSAXLE ASSEMBLY	30900	See step 19	-	-
20	CONNECTOR COVER	82821T	See step 20	-	-
21	TERMINAL CAP	82823M	See step 21	-	-
22	MOTOR CABLE	G1148	See step 22	-	-

•

Non-reusable part

Fig 5: Hybrid Vehicle Transaxle Removal Components [10/2022 - 08/2023] (5 Of 6)

Procedure		Part Name Code
23	NO. 4 MOTOR COOLING PIPE	G1253	-	-	-
24	MOTOR COOLING COOLER	G125A	-	-	-
25	NO. 2 TRANSMISSION OIL COOLER BRACKET	32913J	-	-	-
26	NO. 2 MOTOR COOLING PIPE	G1252A	-	-	-

*A	w/o Water Cooled	*B	w/ Water Cooled
•	Non-reusable part	-	-

Fig 6: Hybrid Vehicle Transaxle Removal Components [10/2022 - 08/2023] (6 Of 6)

Procedure		Part Name Code
27	NO. 3 INVERTER BRACKET	G9216	-	-	-
28	WIRE HARNESS CLAMP BRACKET	-	-	-	-
29	TRANSAXLE HOUSING PLUG	-	-	-	-
30	STUD BOLT	-	See step 30	-	-
31	TRANSAXLE BREATHER PLUG	30900N	-	-	-
32	TRANSAXLE HOUSING TUBE CONNECTOR	30900K	-	-	-

•

Non-reusable part

Precoated part
