Removal [08/2023 - 10/2024]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM RESOLVER INITIALIZATION

NOTE:

If it is necessary to replace the hybrid vehicle transaxle assembly, make sure to perform resolver initialization before starting work.

for HEV Model:
Refer to UTILITY [10/2022 - ]
for PHEV Model:
Refer to UTILITY [08/2023 - ]

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
- for HEV Model:
  Refer to REMOVAL [10/2022 - 10/2024]
- for PHEV Model:
  Refer to REMOVAL [08/2023 - ]
REMOVE FUEL DELIVERY GUARD
- for HEV Model:
  Refer to PROCEDURE - Step 43
- for PHEV Model:
  Refer to PROCEDURE - Step 44

INSTALL ENGINE HANGERS

for HEV Model:
Refer to PROCEDURE - Step 44
for PHEV Model:
Refer to PROCEDURE - Step 45

REMOVE STEERING GEAR HEAT INSULATOR
Refer to PROCEDURE - Step 13

DISCONNECT ENGINE WIRE

NOTE:

Cover the hole where the shift control actuator assembly was installed with tape or equivalent (non-residue type) to prevent entry of foreign matter, water, etc.

GTY1066966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1128875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the wire harness connector from the rack and pinion power steering gear assembly.
HINT:

Release the lock before rotating the lock lever.
Remove the 2 bolts to disconnect the engine wire.
Disengage the 6 clamps to disconnect the engine wire.

GTY1206805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for PHEV Model

*B

for HEV Model

DISCONNECT HV AIR CONDITIONING WIRE

GTY1064188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TRANSAXLE UNDER STOPPER BRACKET

GTY1129534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY

GTY1064227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 MOTOR COOLING PIPE

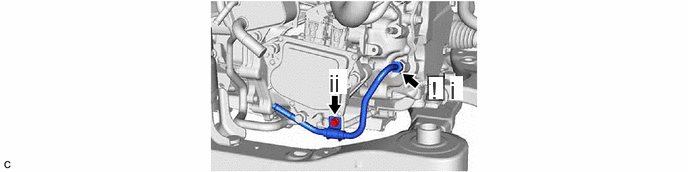

GTY1125048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Loosen the flare nut of the No. 1 motor cooling pipe and disconnect the No. 1 motor cooling pipe from the union.
Remove the bolt, No. 2 oil cooler tube clamp and No. 1 motor cooling pipe from the No. 2 motor cooling pipe.

REMOVE WIRE HARNESS CLAMP BRACKET
See step 7
REMOVE OIL PUMP WITH MOTOR ASSEMBLY
See step 8

REMOVE FLYWHEEL HOUSING SIDE COVER

GTY1064218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT FRAME ASSEMBLY
Refer to PROCEDURE - Step 8
REMOVE FRONT ENGINE MOUNTING INSULATOR
- for HEV Model:
  Refer to PROCEDURE - Step 54
- for PHEV Model:
  Refer to PROCEDURE - Step 55

REMOVE FRONT ENGINE MOUNTING BRACKET

GTY1064216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR ENGINE MOUNTING INSULATOR
- for HEV Model:
  Refer to PROCEDURE - Step 55
- for PHEV Model:
  Refer to PROCEDURE - Step 56

REMOVE REAR ENGINE MOUNTING BRACKET

GTY1064207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY

NOTE:

To avoid damaging the knock pins, do not pry between the hybrid vehicle transaxle assembly and engine assembly.
To prevent the splines of the transmission input damper assembly from becoming misaligned, do not allow the hybrid vehicle transaxle assembly to hit the transmission input damper assembly during hybrid vehicle transaxle assembly removal and installation.

GTY1064577

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CONNECTOR COVER

See step 2
REMOVE TERMINAL CAP

See step 3
REMOVE MOTOR CABLE

See step 4

REMOVE NO. 4 MOTOR COOLING PIPE (w/o Water Cooled)

GTY1064253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE MOTOR COOLING COOLER (w/ Water Cooled)

GTY1064223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 TRANSMISSION OIL COOLER BRACKET

GTY1064249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 MOTOR COOLING PIPE

GTY1064266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 3 INVERTER BRACKET

GTY1064265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE WIRE HARNESS CLAMP BRACKET

GTY1064256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TRANSAXLE HOUSING PLUG

GTY1064243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE STUD BOLT

GTY1127512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an E10 "TORX" socket wrench, remove the 2 stud bolts from the hybrid vehicle transaxle assembly.

REMOVE TRANSAXLE BREATHER PLUG

HINT:

Perform this procedure only when replacement of the transaxle breather plug is necessary.

GTY1064236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TRANSAXLE HOUSING TUBE CONNECTOR

HINT:

Perform this procedure only when replacement of the transaxle housing tube connector or O-ring is necessary.

GTY1064232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
