On-Vehicle Inspection [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

WARNING:

Make sure to apply the parking brake and chock a wheel before performing this procedure.
If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SHIFT CONTROL ACTUATOR ASSEMBLY
HINT:

Refer to REMOVAL [10/2022 - 08/2023] , or refer to REMOVAL [08/2023 - ]

INSPECT HYBRID VEHICLE TRANSAXLE ASSEMBLY

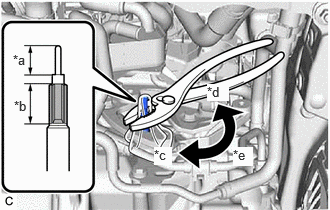

Using a pair of pliers, grip the parking lock shaft that has been wrapped with a cloth or other material and rotate it in the direction shown by the arrow in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	2-flats Portion of Parking Lock Shaft
*b	Spline Portion of Parking Lock Shaft
*c	Parking Lock
*d	Unlock
*e	Rotate Approximately 20°

Standard

The parking lock smoothly engages and disengages.

NOTE:

Do not grip the 2-flats portion (*a) of the parking lock shaft.
Make sure to use a cloth or other material to prevent damage to the spline portion (*b) of the parking lock shaft.
After performing the inspection, set the parking lock shaft to the parking lock position.

INSTALL SHIFT CONTROL ACTUATOR ASSEMBLY
HINT:

Refer to INSTALLATION [10/2022 - 08/2023] , or refer to INSTALLATION [08/2023 - ]
