Components [10/2022 - 08/2023]
WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: P810 Hybrid Transaxle Fluid Replacement Components With Torque Specifications [10/2022 - 08/2023] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

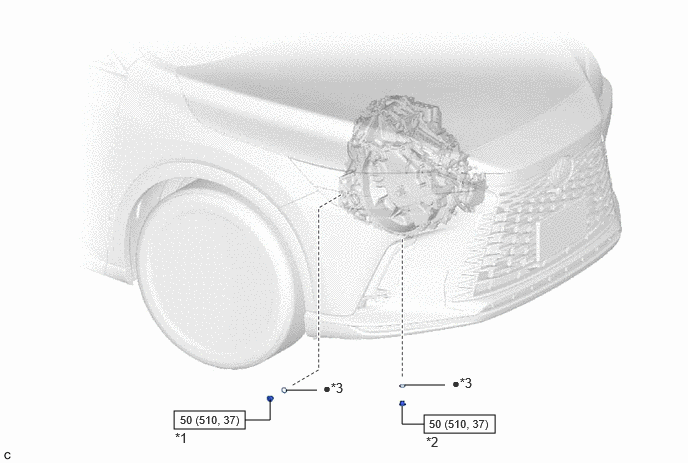

Fig 2: P810 Hybrid Transaxle Fluid Replacement Components With Torque Specifications [10/2022 - 08/2023] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | FILLER PLUG | *2 | DRAIN PLUG |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
