Components [08/2023 - ]
WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

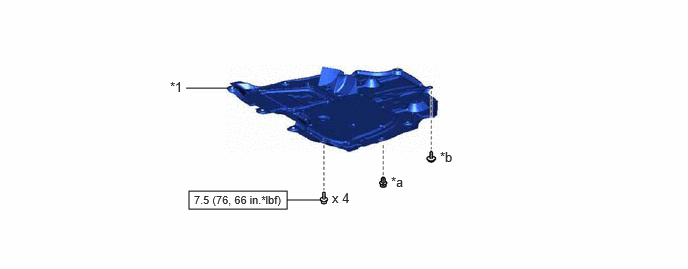

Fig 1: P810 Hybrid Transaxle Fluid Replacement Components With Torque Specifications [08/2023 - ] (1 Of 2)
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| *a | for PHEV Model: x 7 for HEV Model: x 6 |
*b | for PHEV Model: x 1 for HEV Model: x 2 |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: P810 Hybrid Transaxle Fluid Replacement Components With Torque Specifications [08/2023 - ] (2 Of 2)
| *1 | FILLER PLUG | *2 | DRAIN PLUG |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
