DTC P0ABF-00: Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+ and 2024 Lexus RX 450h+. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY)

WARNING:

Be sure to wear insulated gloves and protective goggles.

Pre-procedure1

Check that the service plug grip is not installed.
NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

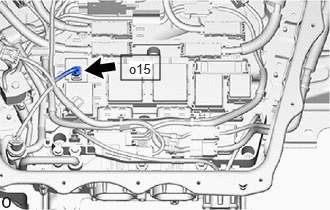

Disconnect the battery ECU assembly connector.

NOTE:

Before disconnecting the connector, check that it is not loose or disconnected.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

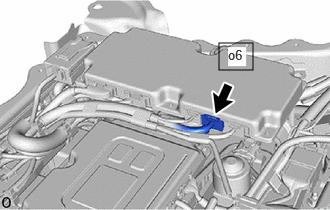

Disconnect the No. 2 traction battery device box assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Before disconnecting the connector, check that it is not loose or disconnected.

Measure the resistance according to the value(s) in the tables below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

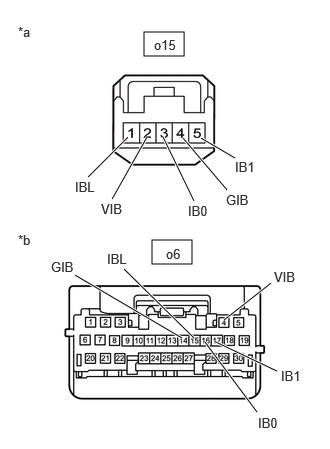

*a	Front view of wire harness connector (to No. 2 Traction Battery Device Box Assembly)
*b	Front view of wire harness connector (to Battery ECU Assembly)

Standard Resistance (Check for Open)

Tester Connection	Condition	Specified Condition	Result
o15-1 (IBL) - o6-15 (IBL)	Ignition switch off	Below 1 Ω	Ω
o15-5 (IB1) - o6-17 (IB1)	Ignition switch off	Below 1 Ω	Ω
o15-4 (GIB) - o6-14 (GIB)	Ignition switch off	Below 1 Ω	Ω
o15-3 (IB0) - o6-16 (IB0)	Ignition switch off	Below 1 Ω	Ω
o15-2 (VIB) - o6-4 (VIB)	Ignition switch off	Below 1 Ω	Ω

Standard Resistance (Check for Short)

Tester Connection	Condition	Specified Condition	Result
o15-1 (IBL) or o6-15 (IBL) - Body ground and other terminals	Ignition switch off	10 kΩ or higher	kΩ
o15-5 (IB1) or o6-17 (IB1) - Body ground and other terminals	Ignition switch off	10 kΩ or higher	kΩ
o15-4 (GIB) or o6-14 (GIB) - Body ground and other terminals	Ignition switch off	10 kΩ or higher	kΩ
o15-3 (IB0) or o6-16 (IB0) - Body ground and other terminals	Ignition switch off	10 kΩ or higher	kΩ
o15-2 (VIB) or o6-4 (VIB) - Body ground and other terminals	Ignition switch off	10 kΩ or higher	kΩ

Result

Proceed to
OK
NG

Post-procedure1

Reconnect the No. 2 traction battery device box assembly connector.
Reconnect the battery ECU assembly connector.

Result:

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

See step 2

REPLACE NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY
HINT:

Refer to REMOVAL [08/2023 - ]

Result

Proceed to

NEXT

Result:

NEXT

See step 3
CLEAR DTC
Refer to PROCEDURE - Step 3

Result

Proceed to

NEXT

Result:

NEXT

See step 4

PERFORM ROAD TEST

Pre-procedure1

Turn the ignition switch to ON (READY).

Drive the vehicle for approximately 10 minutes according to the freeze frame data items "Vehicle Speed", "Accelerator Position", "Hybrid/EV Battery Current", "Motor Torque" and "Generator Torque".

Powertrain > Hybrid Control > DTC(P0ABF-00) > Freeze Frame Data

Tester Display
Vehicle Speed
Accelerator Position
Generator Torque
Motor Torque
Hybrid/EV Battery Current

Result

Proceed to
NEXT

Post-procedure1

Turn the ignition switch off.

Result:

See step 5

CHECK DTC OUTPUT (HYBRID CONTROL)

Pre-procedure1

None.

Check for DTCs.

Powertrain > Hybrid Control > Trouble Codes

Result

Result	Proceed to
P0ABF-00 is not output	A
P0ABF-00 is output	B

Post-procedure1

Turn the ignition switch off.

Result:

COMPLETED

Result:

REPLACE BATTERY ECU ASSEMBLY. Refer to REMOVAL [08/2023 - ]
