Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REASSEMBLY)

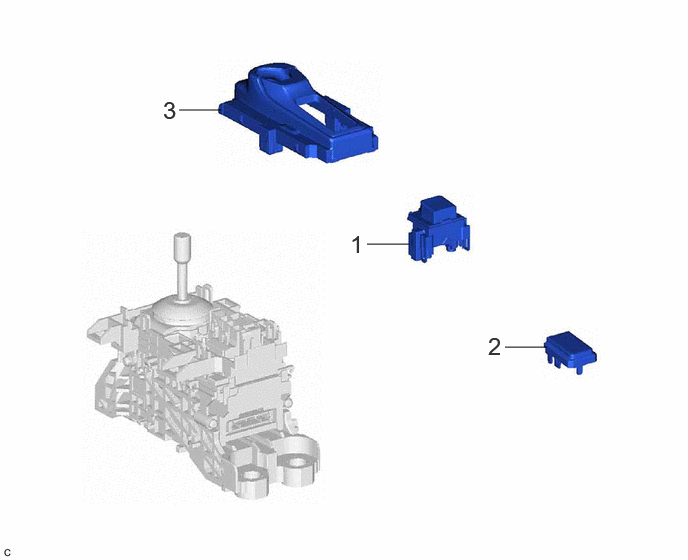

Fig 1: Shift Lever Reassembly Components
GTY1126440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 TRANSMISSION PARKING SWITCH KNOB - - - -
2 CONTROL POSITION INDICATOR PLATE - - - -
3 POSITION INDICATOR HOUSING - - - -
