Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

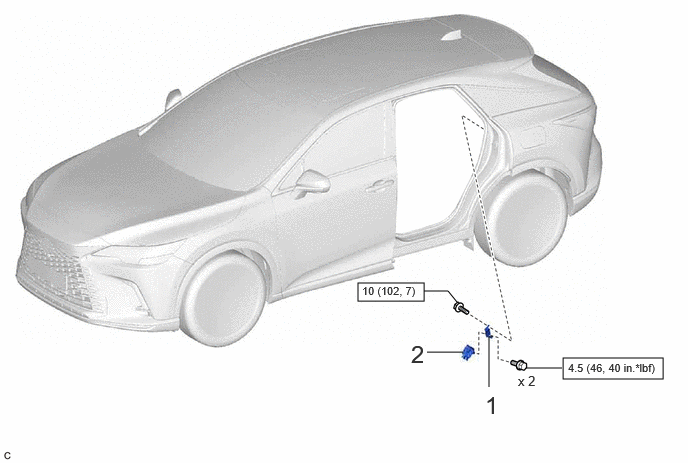

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL PUMP CONTROL ECU BRACKET | 89573 | - | - | - |
| 2 | FUEL PUMP CONTROL ECU | 89571 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

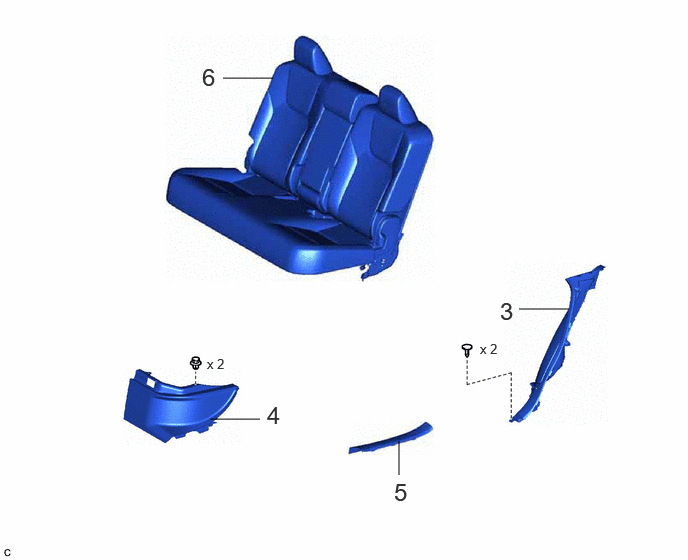

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 3 | REAR SEAT SIDE GARNISH LH | 62552F | - | - | - |
| 4 | NO. 3 BATTERY SERVICE COVER BOARD | 58467J | - | - | - |
| 5 | REAR DOOR SCUFF PLATE LH | 67918A | - | - | - |
| 6 | REAR SEAT ASSEMBLY | - | - | - | - |
