The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel tank assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly | Parking Support Brake System* | Refer to INITIALIZATION [10/2022 - ] |
*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.
WARNING:
- Never perform work on fuel system components near any possible ignition sources.
- Vaporized fuel could ignite, resulting in a serious accident.
- Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
- Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
NOTE:
- After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
ITEMS FOR WHICH LEARNING IS COMPLETED BY DRIVING THE VEHICLE
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Front Camera System | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. | Refer to INITIALIZATION [10/2022 - ] |
| Adaptive High Beam System | ||
| Lighting System (w/ Automatic Headlight Beam Level Control System) |
ITEMS FOR WHICH LEARNING IS COMPLETED BY OPERATING THE VEHICLE NORMALLY
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Power Back Door System | Reset back door close position | Refer to INITIALIZATION [10/2022 - ] |
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |

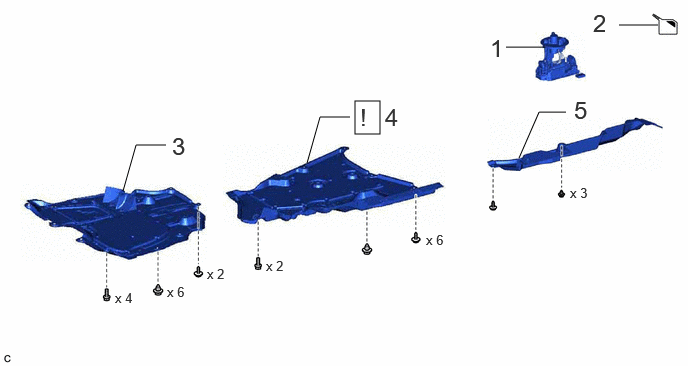

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | 77020A | - | - | - |
| 2 | DRAIN FUEL | - | - | See step 2 | - |
| 3 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| 4 | FRONT FLOOR COVER LH | 58166A | See step 4 | - | - |
| 5 | NO. 1 FLOOR UNDER COVER | 58398F | - | - | - |

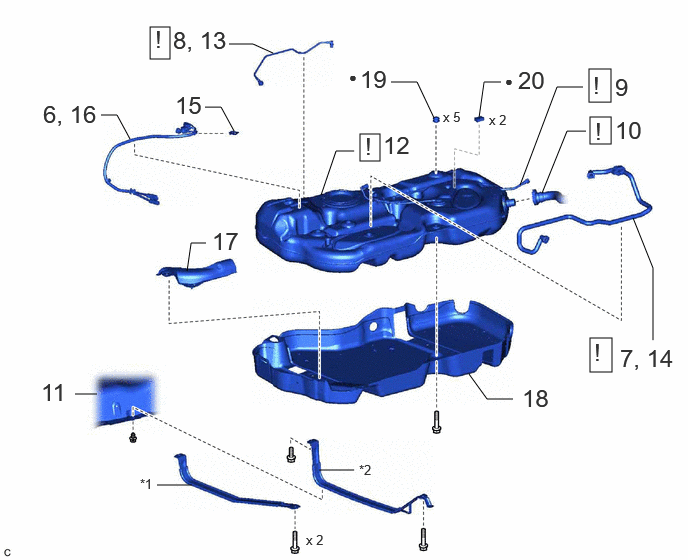

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 6 | DISCONNECT FUEL TANK WIRE | 82413A | - | - | - |
| 7 | DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404 | See step 7 | - | - |
| 8 | DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY | 77209F | See step 8 | - | - |
| 9 | FUEL TANK BREATHER TUBE | - | See step 9 | - | - |
| 10 | FUEL TANK FILLER PIPE ASSEMBLY | 77210 | See step 10 | - | - |
| 11 | REAR MAIN MUFFLER HEAT INSULATOR SUB-ASSEMBLY | 58043 | - | - | - |
| 12 | FUEL TANK ASSEMBLY | 77100 | See step 12 | - | - |
| 13 | REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY | 77209F | - | - | - |
| 14 | REMOVE FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404 | See step 14 | - | - |
| 15 | NO. 1 FUEL TUBE CLAMP | 77285R | - | - | - |
| 16 | REMOVE FUEL TANK WIRE | 82413A | - | - | - |
| 17 | NO. 2 FUEL TANK PROTECTOR | 77642A | - | - | - |
| 18 | NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY | 77606 | - | - | - |
| 19 | NO. 6 FUEL TANK CUSHION | 77656B | - | - | - |
| 20 | NO. 2 FUEL TANK CUSHION | 77652A | - | - | - |
| *1 | FUEL TANK BAND SUB-ASSEMBLY | *2 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
| • | Non-reusable part | - | - |
