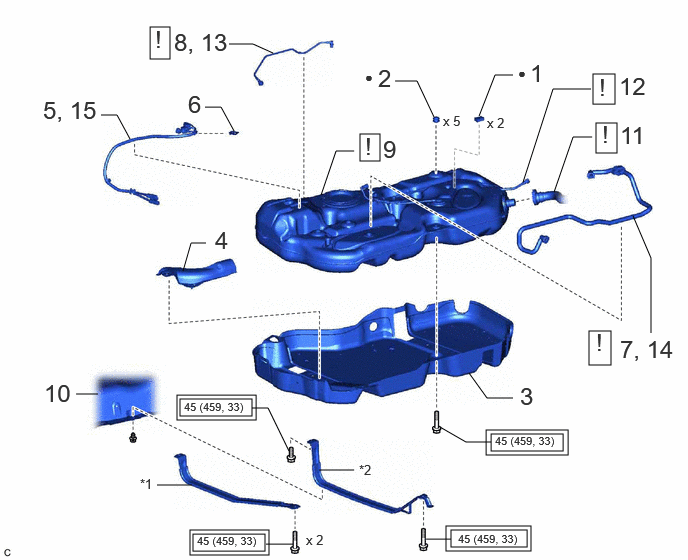

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 2 FUEL TANK CUSHION | 77652A | - | - | - |
| 2 | NO. 6 FUEL TANK CUSHION | 77656B | - | - | - |
| 3 | NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY | 77606 | - | - | - |
| 4 | NO. 2 FUEL TANK PROTECTOR | 77642A | - | - | - |
| 5 | INSTALL FUEL TANK WIRE | 82413A | - | - | - |
| 6 | NO. 1 FUEL TUBE CLAMP | 77285R | - | - | - |
| 7 | INSTALL FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404 | See step 7 | - | - |
| 8 | INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY | 77209F | - | - | - |
| 9 | FUEL TANK ASSEMBLY | 77100 | See step 9 | - | - |
| 10 | REAR MAIN MUFFLER HEAT INSULATOR SUB-ASSEMBLY | 58043 | - | - | - |
| 11 | FUEL TANK FILLER PIPE ASSEMBLY | 77210 | See step 11 | - | - |
| 12 | FUEL TANK BREATHER TUBE | - | See step 12 | - | - |
| 13 | CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY | 77209F | See step 13 | - | - |
| 14 | CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404 | See step 14 | - | - |
| 15 | CONNECT FUEL TANK WIRE | 82413A | - | - | - |
| *1 | FUEL TANK BAND SUB-ASSEMBLY | *2 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

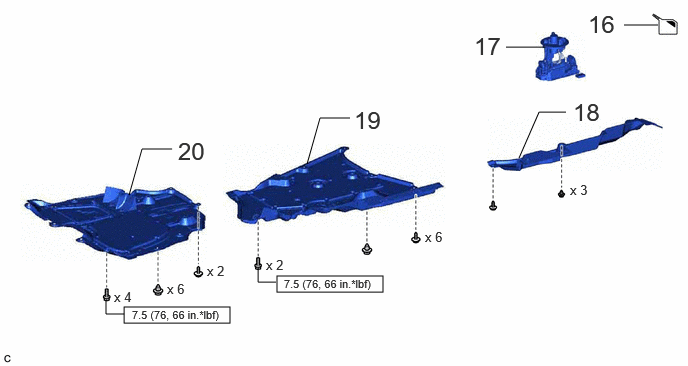

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 16 | ADD FUEL | - | - | See step 16 | - |
| 17 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | 77020A | - | - | - |
| 18 | NO. 1 FLOOR UNDER COVER | 58398F | - | - | - |
| 19 | FRONT FLOOR COVER LH | 58166A | - | - | - |
| 20 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
