Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel tank assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Auxiliary battery terminal is disconnected/reconnected Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly Parking Support Brake System* Refer to INITIALIZATION [10/2022 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

WARNING:
  • Never perform work on fuel system components near any possible ignition sources.
    GTY657996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • Vaporized fuel could ignite, resulting in a serious accident.
  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
    GTY657995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
  • The fuel tank assembly is very heavy. Be sure to follow the procedure described in the appropriate service information , or the fuel tank assembly may fall off the engine lifter.
    GTY563885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]

  • To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to INSPECTION MODE PROCEDURE [10/2022 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

ITEMS FOR WHICH LEARNING IS COMPLETED BY DRIVING THE VEHICLE

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Front Camera System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [10/2022 - ]
Adaptive High Beam System
Lighting System (w/ Automatic Headlight Beam Level Control System)
ITEMS FOR WHICH LEARNING IS COMPLETED BY OPERATING THE VEHICLE NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Back Door System Reset back door close position Refer to INITIALIZATION [10/2022 - ]
Air Conditioning System After the ignition switch is turned to ON, the servo motor and cooler expansion valve standard position is recognized. -


COMPONENTS (REMOVAL)

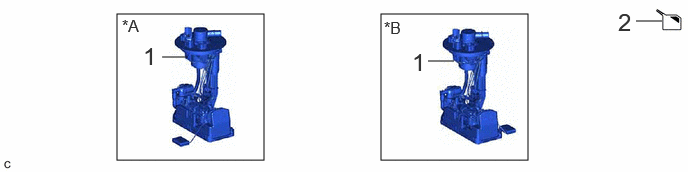

Fig 1: Fuel Tank (For PHEV Model) Removal Components (1 Of 2)
GTY1254777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY 77020A - - -
2 DRAIN FUEL - - See step  2 -
*A for Type A *B for Type B

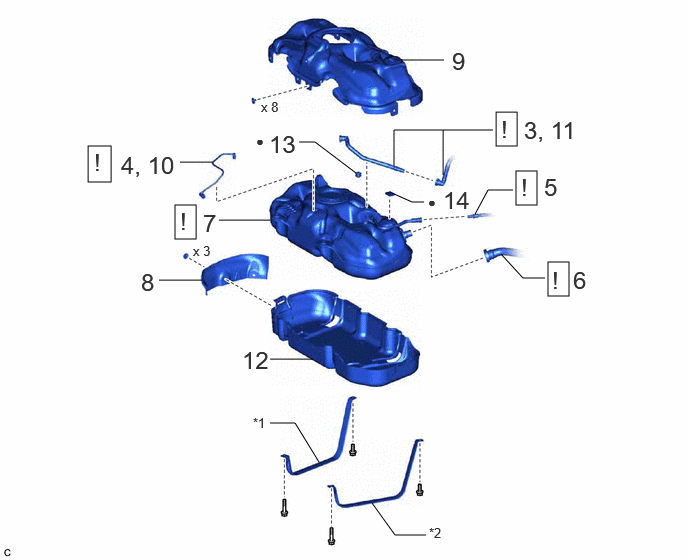

Fig 2: Fuel Tank (For PHEV Model) Removal Components (2 Of 2)
GTY1254806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
3 DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY 77404 See step  3 - -
4 DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY 77209F See step  4 - -
5 FUEL TANK BREATHER TUBE - See step  5 - -
6 FUEL TANK FILLER PIPE ASSEMBLY 77210 See step  6 - -
7 FUEL TANK ASSEMBLY 77100 See step  7 - -
8 FUEL TANK PROTECTOR ASSEMBLY 77641C - - -
9 UPPER FUEL TANK COVER 77611F - - -
10 REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY 77209F - - -
11 REMOVE FUEL TANK VENT HOSE SUB-ASSEMBLY 77404 - - -
12 NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY 77606 - - -
13 NO. 6 FUEL TANK CUSHION 77656B - - -
14 NO. 2 FUEL TANK CUSHION 77652A - - -
*1 NO. 1 FUEL TANK BAND SUB-ASSEMBLY *2 NO. 2 FUEL TANK BAND SUB-ASSEMBLY
Non-reusable part - -
