Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

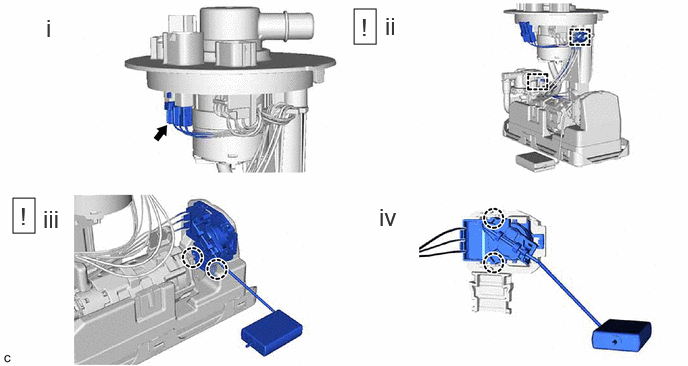

    1. GTY1133609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel sender gauge assembly connector.
      2. Disengage the 2 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.
        NOTE:
        • Do not damage the wire harness.
        • When disengaging each wire harness from the clamp, disengage one wire at a time.
      3. Disengage the 2 claws to remove the fuel gauge bracket with fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.
        NOTE:

        Be careful not to bend the arm of the fuel sender gauge assembly.

      4. Disengage the 2 claws to remove the fuel sender gauge assembly from the fuel gauge bracket.
