Installation [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL SENDER GAUGE ASSEMBLY

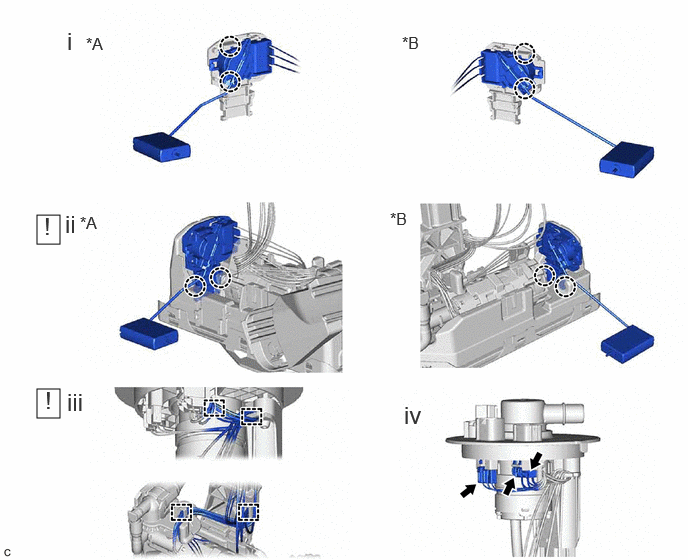

    1. GTY1254302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A *B for Type B
      1. Engage the 2 claws to install the fuel sender gauge assembly to the fuel gauge bracket.
      2. Engage the 2 claws to install the fuel gauge bracket with the fuel sender gauge assembly to the fuel suction tube with pump and gauge assembly.
        NOTE:

        Be careful not to bend the arm of the fuel sender gauge assembly.

      3. Engage the 4 clamps to connect the wire harness to the fuel suction tube with pump and gauge assembly.
        NOTE:
        • Do not damage the wire harness.
        • When engaging each wire harness to the clamp, engage one wire at a time.
      4. Connect the 2 fuel pump harness connectors and fuel sender gauge assembly connector.
  2. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to INSTALLATION [08/2023 - ]
