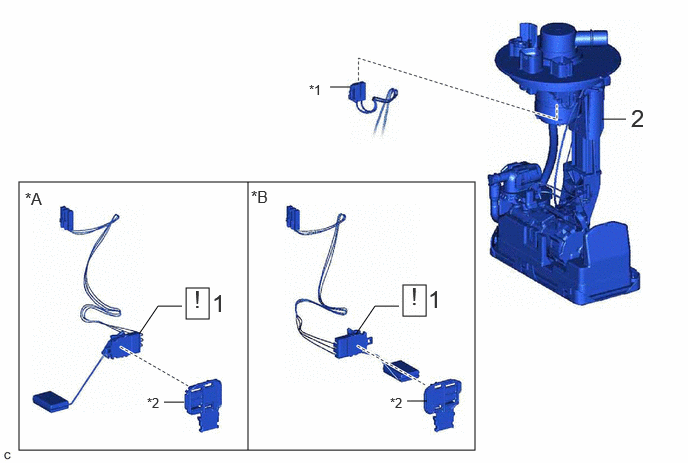

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL SENDER GAUGE ASSEMBLY | 83320 | See step 1 | - | - |
| 2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | 77020A | - | - | - |
| *A | for Type A | *B | for Type B |
| *1 | FUEL PUMP HARNESS | *2 | FUEL GAUGE BRACKET |
