NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [10/2022 - ]
COMPONENTS (INSTALLATION)
Fig 1: Fuel Pressure Sensor (For High Pressure) Installation Components With Torque Specifications [08/2023 - ] (1 Of 2)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL PRESSURE SENSOR | 89458 | See step 1 | - | - |
| 2 | NO. 1 FUEL PRESSURE SENSOR HOLDER | 23851 | See step 2 | - | - |
| 3 | INTAKE MANIFOLD | 17111 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

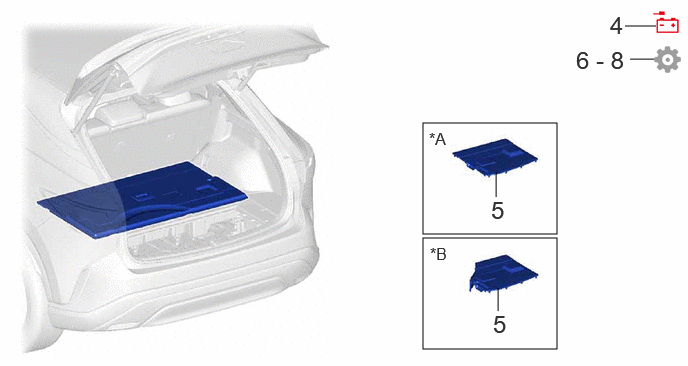

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 5 | BATTERY SERVICE COVER PLATE | 58491E | - | - | - |
| 6 | INSPECT FOR FUEL LEAK | - | - | - | See step 6 |
| 7 | PERFORM INITIALIZATION | - | - | - | See step 7 |
| 8 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL | - | - | - | See step 8 |
| *A | w/o Spare Tire | *B | w/ Spare Tire |
