System Diagram [10/2024 - ]

WARNING: This page is about a different car, the 2025 Lexus RX 350h, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

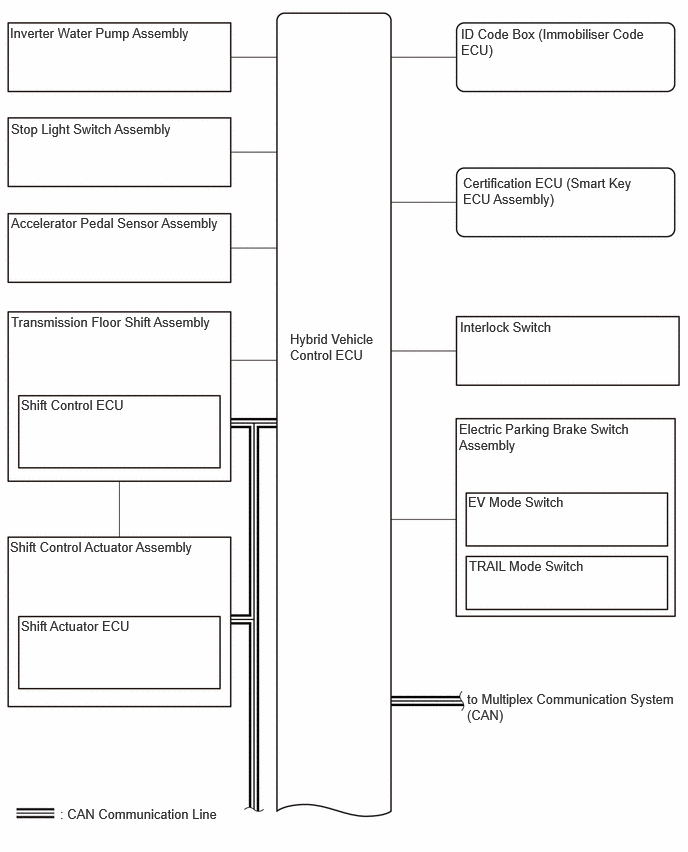

GTY1205902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1254618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

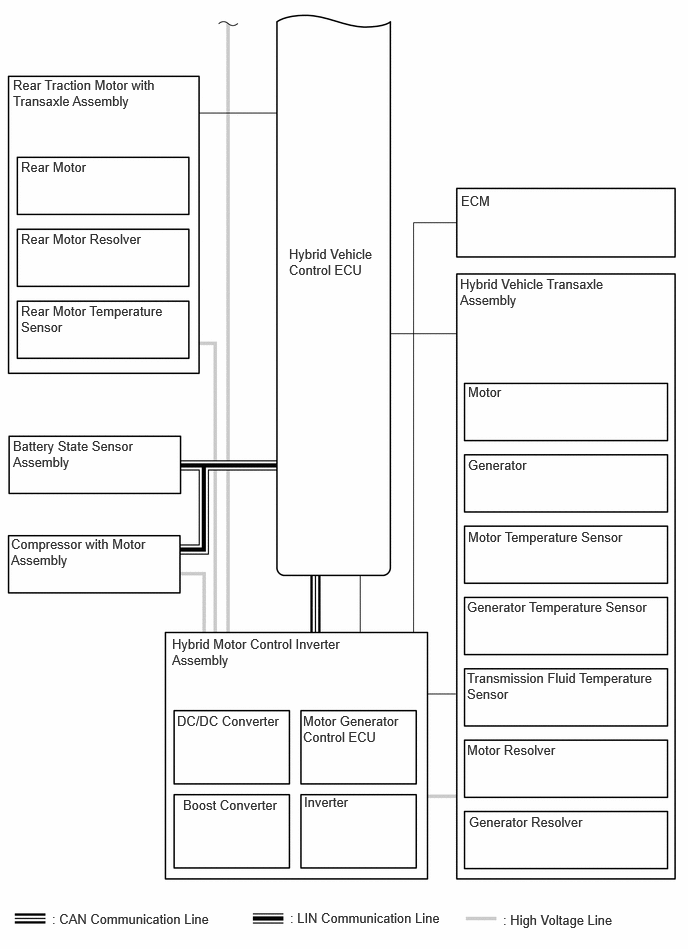

GTY1254387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
