Parts Location [10/2022 - ]: Illustration

WARNING: This page is about a different car, the 2025 Lexus RX 350h, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

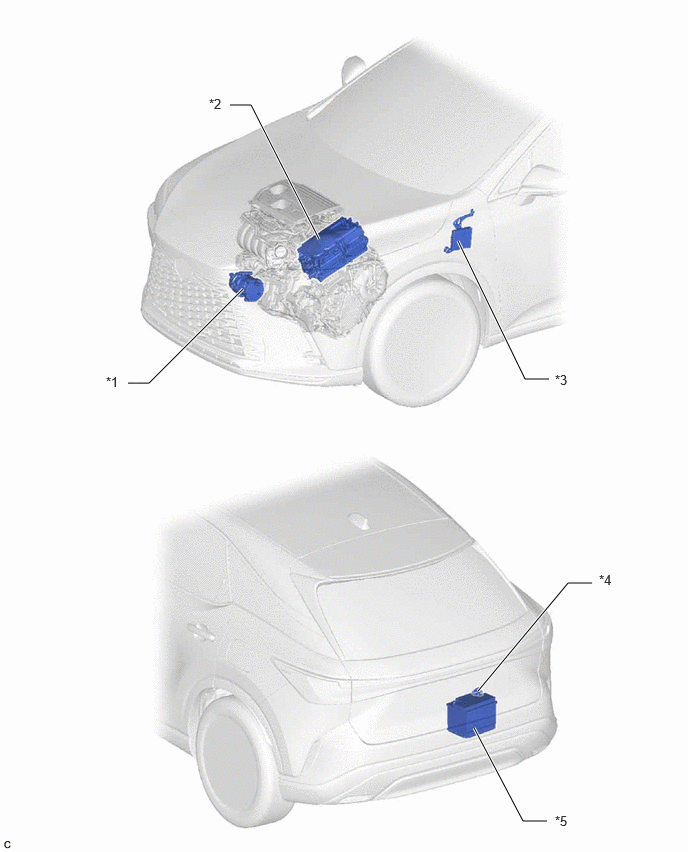

GTY1133401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMPRESSOR WITH MOTOR ASSEMBLY *2 HYBRID MOTOR CONTROL INVERTER ASSEMBLY
*3 HYBRID VEHICLE CONTROL ECU ASSEMBLY *4 BATTERY STATE SENSOR ASSEMBLY
*5 AUXILIARY BATTERY - -
