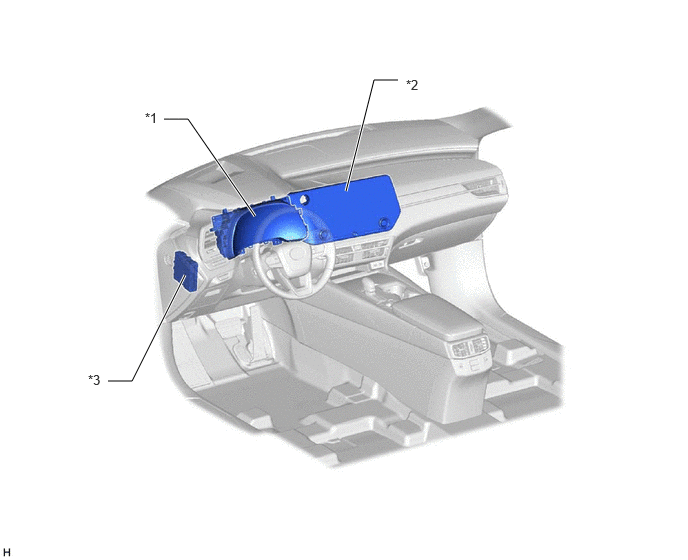

Parts Location [08/2023 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus RX 450h+ and 2024 Lexus RX 450h+. However, it is still accessible from the selected car via links, so may be relevant.

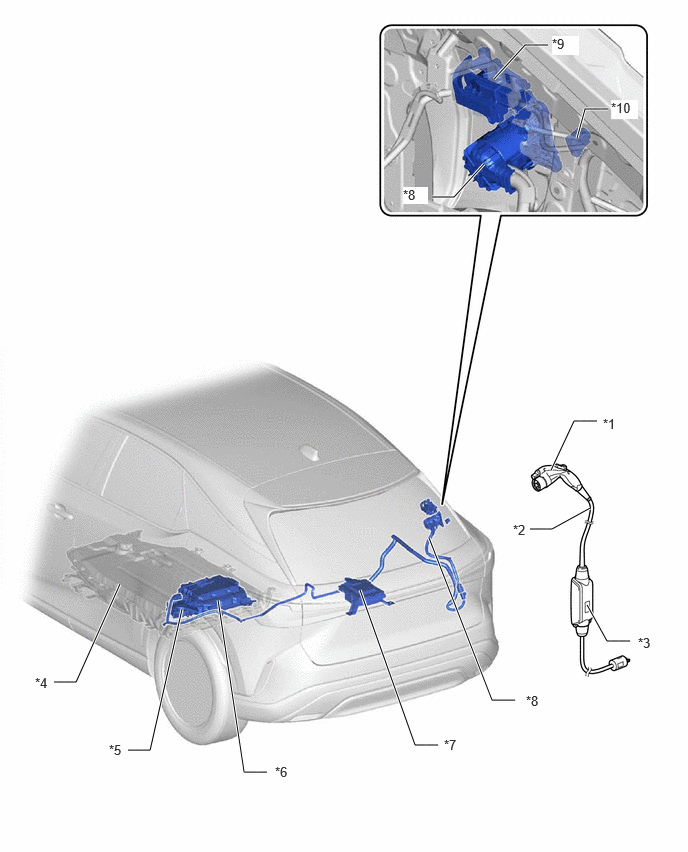

| *1 | CHARGING CONNECTOR | *2 | CHARGING CABLE (ELECTRIC VEHICLE CHARGER CABLE ASSEMBLY) |
| *3 | CCID (CHARGING CIRCUIT INTERRRUPTING DEVICE) | *4 | HV SUPPLY BATTERY ASSEMBLY |
| *5 | CHARGER COOLING BLOWER | *6 | ELECTRIC VEHICLE CHARGER ASSEMBLY - CHARGE CONTROL ECU |
| *7 | JUNCTION BLOCK (JUNCTION BOX) | *8 | AC CHARGER INLET CABLE - CHARGING INLET |
| *9 | CABLE EV CHARGER LOCK ASSEMBLY | *10 | EV CHARGER LID INDICATOR - CHARGING INDICATOR |

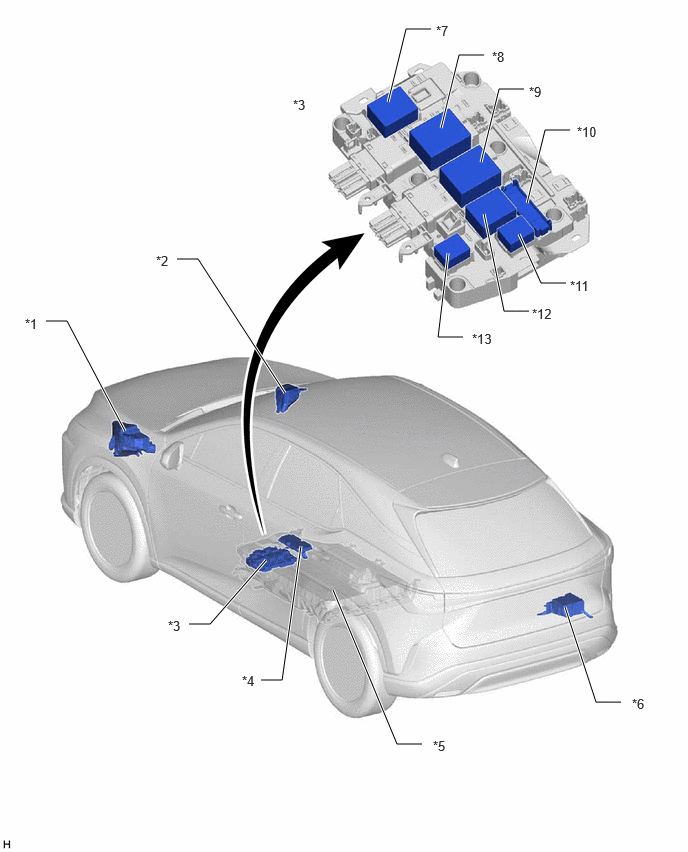

| *1 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *2 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
| *3 | NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY | *4 | BATTERY ECU ASSEMBLY |
| *5 | HV SUPPLY BATTERY ASSEMBLY | *6 | NO. 1 LUGGAGE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *7 | CHRB RELAY | *8 | SMRB RELAY |
| *9 | SMRG RELAY | *10 | SYSTEM MAIN RESISTOR |
| *11 | CHRP RELAY | *12 | CHRG RELAY |
| *13 | SMRP RELAY | - | - |
