Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION WIRE

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

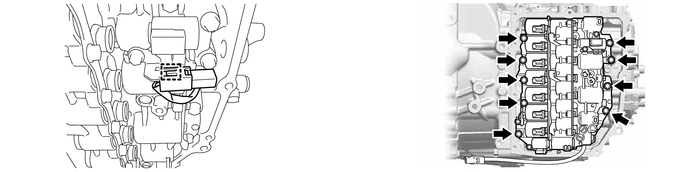

    1. GTY1062063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSAXLE CASE GASKET

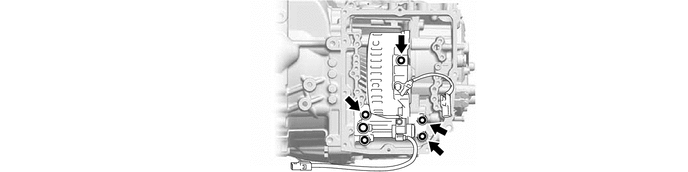

    1. GTY1062765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT OIL PUMP COVER GASKET
    1. GTY1063148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
