Reassembly [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

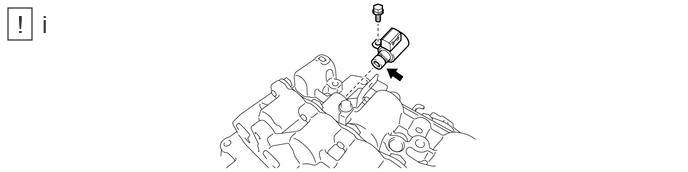

  1. INSTALL SOLENOID (SL) VALVE
    1. GTY1062974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SL) valve with Toyota Genuine ATF WS and install the solenoid (SL) valve to the transmission valve body assembly with the bolt.

        Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

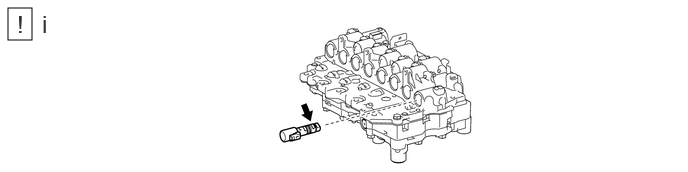

  2. INSTALL SOLENOID (SLT) VALVE
    1. GTY1062830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SLT) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

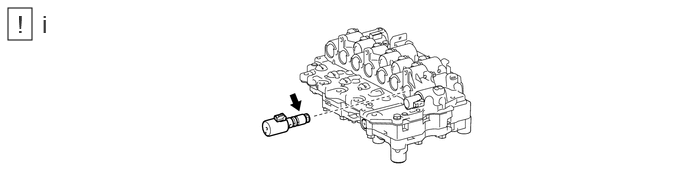

  3. INSTALL SOLENOID (SL2) VALVE
    1. GTY1063027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SL2) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

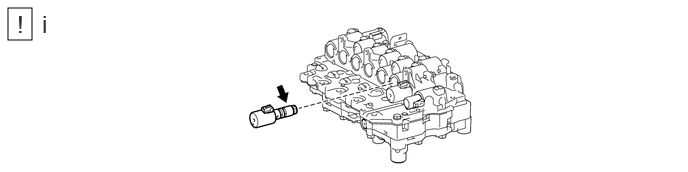

  4. INSTALL SOLENOID (SL1) VALVE
    1. GTY1062711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SL1) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
  5. INSTALL SOLENOID (SL3) VALVE

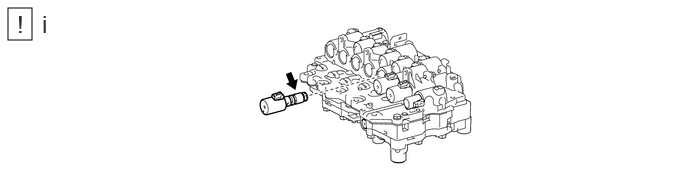

    1. GTY1062920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SL3) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

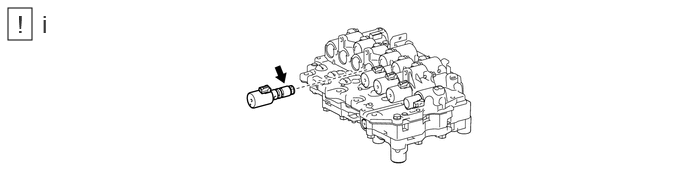

  6. INSTALL SOLENOID (SL4) VALVE
    1. GTY1062337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SL4) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
  7. INSTALL SOLENOID (SL6) VALVE

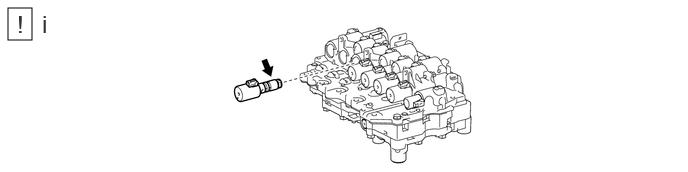

    1. GTY1062838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SL6) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

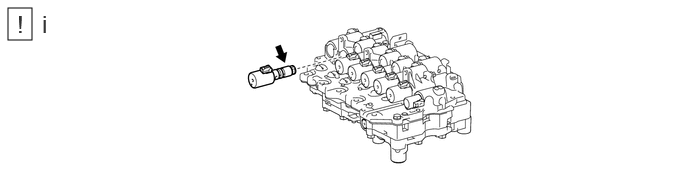

  8. INSTALL SOLENOID (SL5) VALVE
    1. GTY1062485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SL5) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

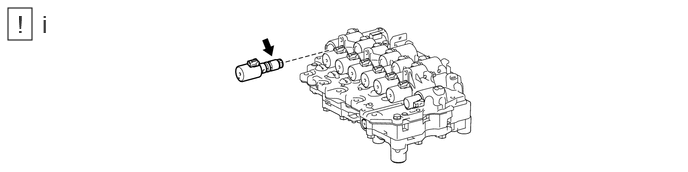

  9. INSTALL SOLENOID (SLU) VALVE
    1. GTY1061719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the solenoid (SLU) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
  10. INSTALL SOLENOID LOCK PLATE
    1. GTY1062092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

  11. INSTALL WIRE HARNESS CLAMP
    1. GTY1062117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

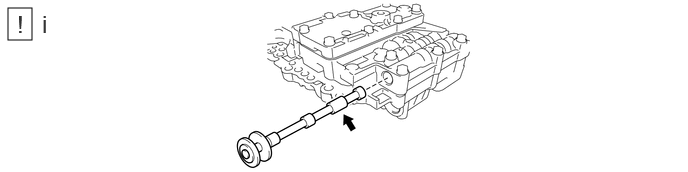

  12. INSTALL MANUAL VALVE
    1. GTY1062382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat the manual valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
