Replacement [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    If automatic transaxle assembly parts are replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary.

    Refer to PRECAUTION [10/2022 - ]

  2. REMOVE TRANSFER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  3. REMOVE DIFFERENTIAL SIDE OIL SEAL
    1. Using a screwdriver with its tip wrapped with protective tape, remove the differential side oil seal from the transaxle housing.

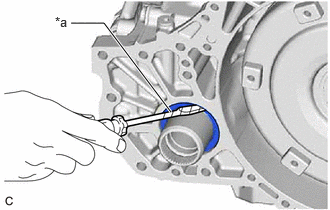

      GTY1062376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Do not damage the front differential case or transaxle housing.

  4. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST, remove the front drive shaft oil seal RH from the front differential case.

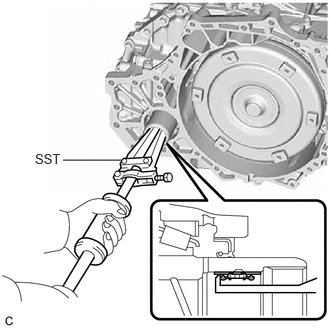

      GTY1061952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Do not damage the front differential case.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Coat the lip of a new front drive shaft oil seal RH with MP grease.
    2. Using SST and a hammer, install the front drive shaft oil seal RH to the front differential case.

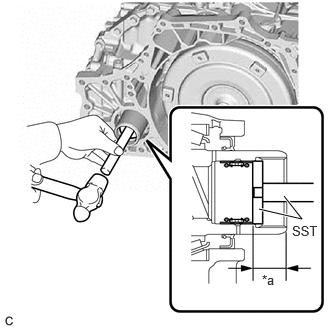

      GTY1062588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      • SST: 09950-60011
        1. 09951-00410
      • SST: 09950-70010
        1. 09951-07200

      Standard Depth

      21.5 to 22.5 mm (0.846 to 0.886 in.)

      NOTE:
      • Make sure to install the front drive shaft oil seal RH as specified, otherwise malfunctions such as a fluid leak will occur.
      • Do not damage the lip of the front drive shaft oil seal RH.
  6. INSTALL DIFFERENTIAL SIDE OIL SEAL
    1. Coat the lip of a new differential side oil seal with MP grease.
    2. Using SST and a hammer, install the differential side oil seal to the transaxle housing.

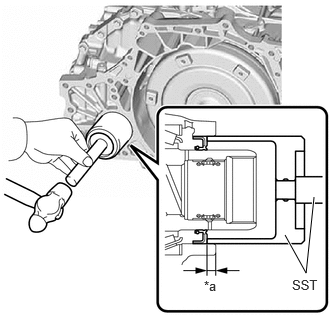

      GTY1061879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      • SST: 09649-17010
      • SST: 09950-70010
        1. 09951-07200

      Standard Depth

      5.5 to 6.5 mm (0.217 to 0.256 in.)

      NOTE:
      • Be sure to install the differential side oil seal in the correct direction.
      • Make sure to install the differential side oil seal as specified, otherwise malfunctions such as a fluid leak will occur.
      • Do not damage the lip of the differential side oil seal.
  7. INSTALL TRANSFER ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]
